138
(4) CENTER CASE AND DIFF. CASE
REASSEMBLING
*Reassemble center case and diff. case with
reverse procedure of disassembling.
Use following value for reassembling of center
case and diff. case as adjustment and service
standard.
1. Apply lithium grease to o-ring.
2. Tightening torque of drain plug (13).
[28.93~57.86 in.]
3. Diff. case assy assembling
1) Make sure the backlash between pinion and
side gear is in the range of
[0.0004~0.0118in.]
2) Apply threebond #1374 to tightening torque
of ring gear fixing bolts. Tightening torque of
ring gear fixing bolts is; [50.63~57.86 in.]
3) Install the spring pin with direction as shown
below.

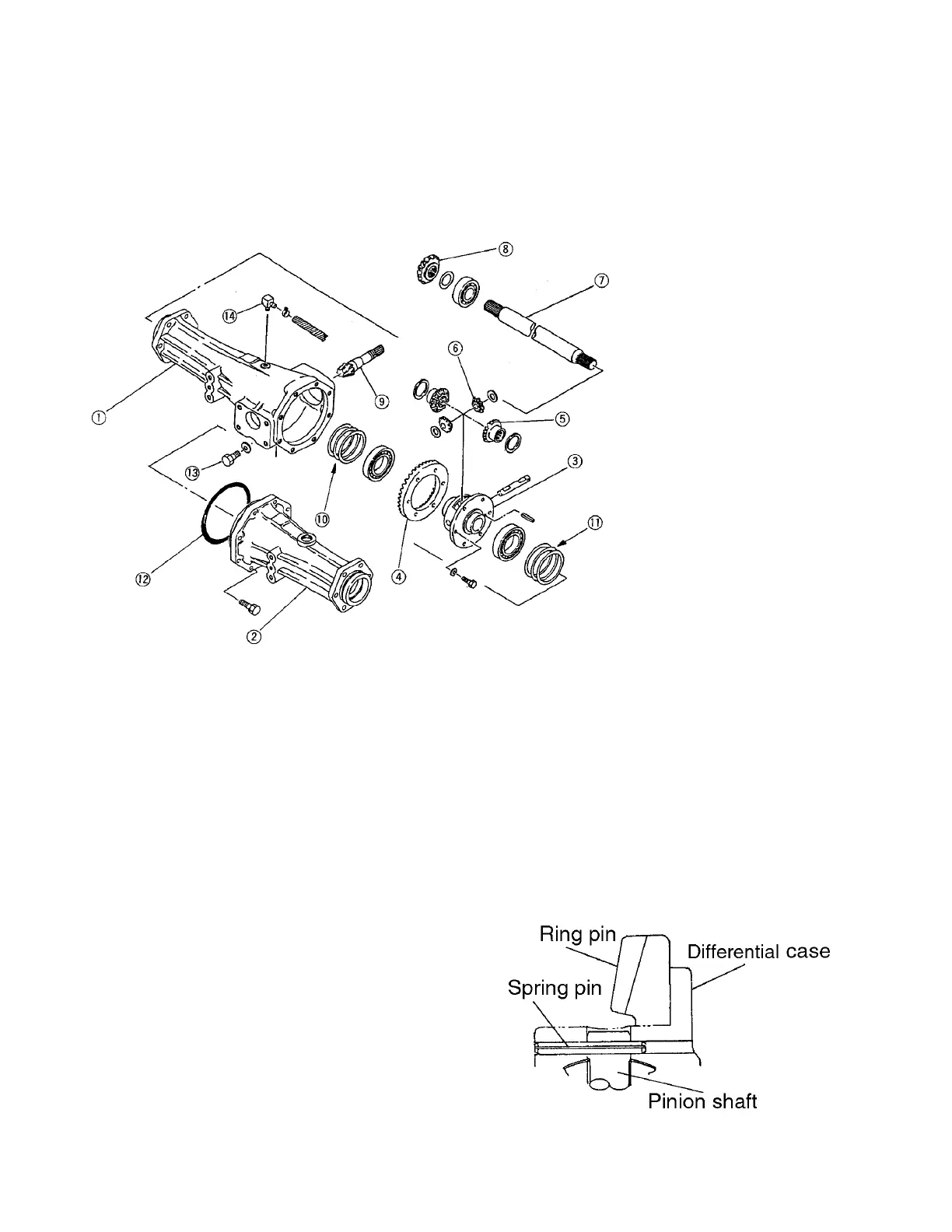

(1)CENTER CASE R.H.
(2)CENTER CASE L.H.
(3)DIFFERENTIAL CASE
(4)RING GEAR
(5)SIDE GEAR
(6)PINION
(7)DIFFERENTIAL SHAFT
(8)GEAR 14T
(9)PINION SHAFT
(10)LINER
(11)LINER
(12)O-RING
(13)DRAIN PLUG
(14)JOINT
To Next Page
