162
3)After adjustment of plate position , lock the
all three nuts (16).
2. Control linkage installation
1) O-ring installation to shafts
Fit the draft shaft (10) and shaft (11) in the
housing and pull it out until o-ring groove
comes to out side of housing. Fit the o-ring
in the groove, apply grease and pull in the
shaft.
Drawing from 4501 7-53

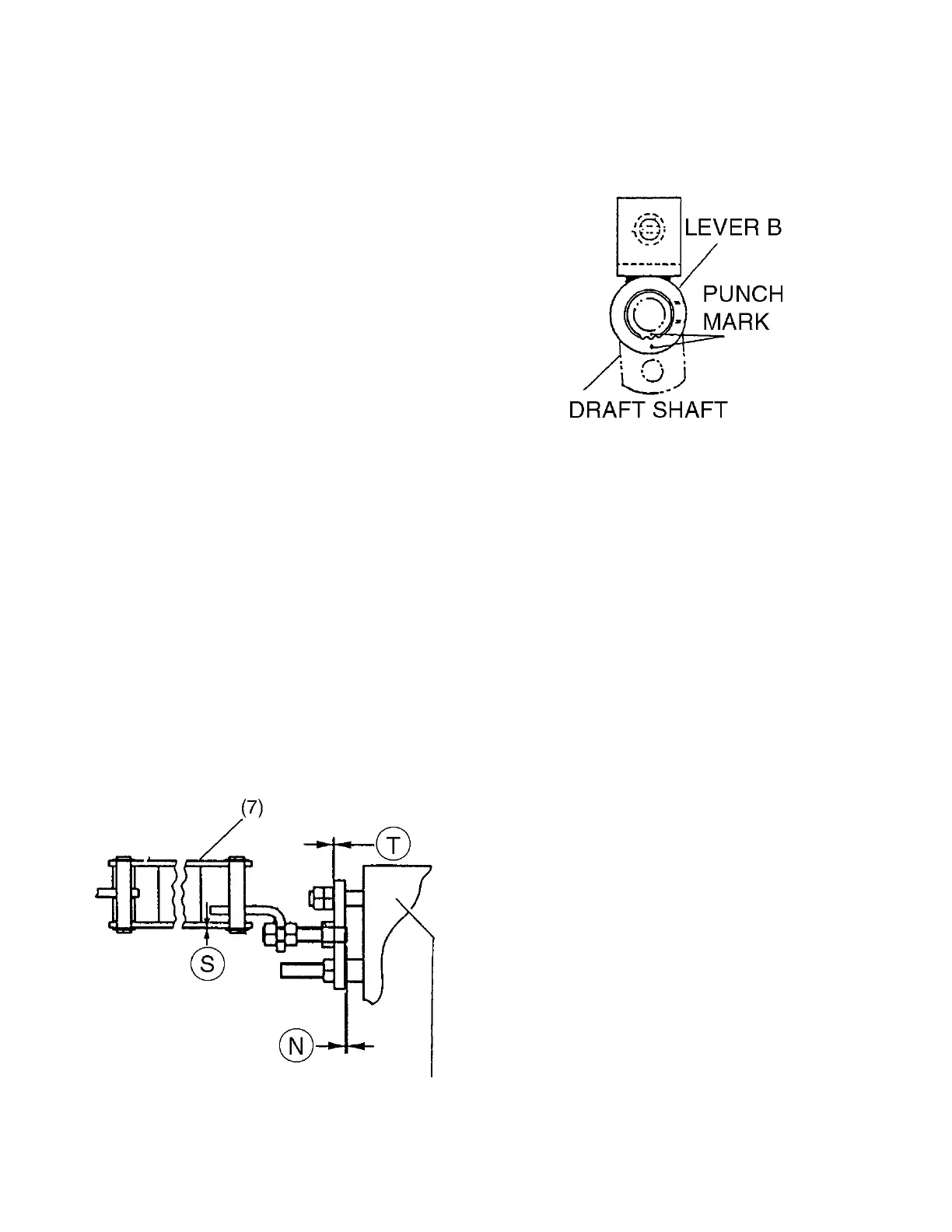

2) Adjust side play (S) at link H (7) to be less
than [0.0118in.] by liner.
3) Aline the punch mark of lever B (13) and
draft shaft (10).
4) Install link H (7) that the side of linkage plate
touches lightly to guide (2). Make sure
linkage H (7) can move parallel to the
cylinder.
To Next Page
