126

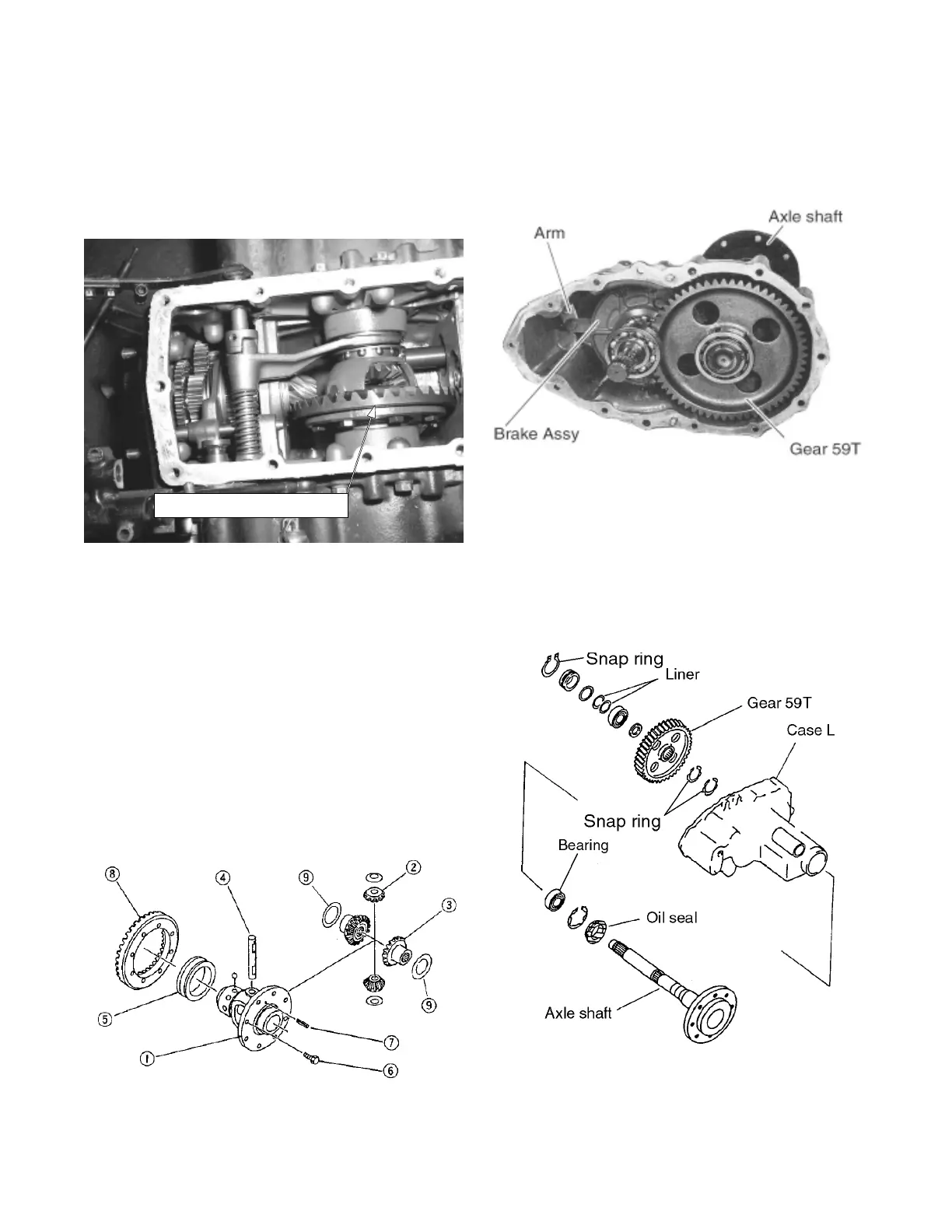

7-2. REAR AXLE DISASSEMBLING
(1) REAR AXLE ASSY REMOVAL
(See page 23.)
(2) REAR AXLE ASSY DISASSEMBLING
1. Remove snap ring and remove liner, bearing
and gear 59T from axle shaft. Remove snap
ring, bearing and axle shaft from rear axle
housing.
7. REAR AXLE
7-1. DIFFERENTIAL CASE ASSY
DISASSEMBLING
(1) DIFFERENTIAL CASE ASSY REMOVAL
(See page 21.)
(2) DIFFERENTIAL ASSY DISASSEMBLING
1. Remove the differential lock hub (5) and steel
balls.
2. Remove the fixing bolts (6) of ring gear and
remove ring gear (8) from differential case.
3. Remove the spring pin (7) and remove the
shaft.
4. Remove diff. side pinion gears, diff. side gears
and liners.
DIFFERENTIAL CASE ASSY
To Next Page
