3. Pinion Shaft

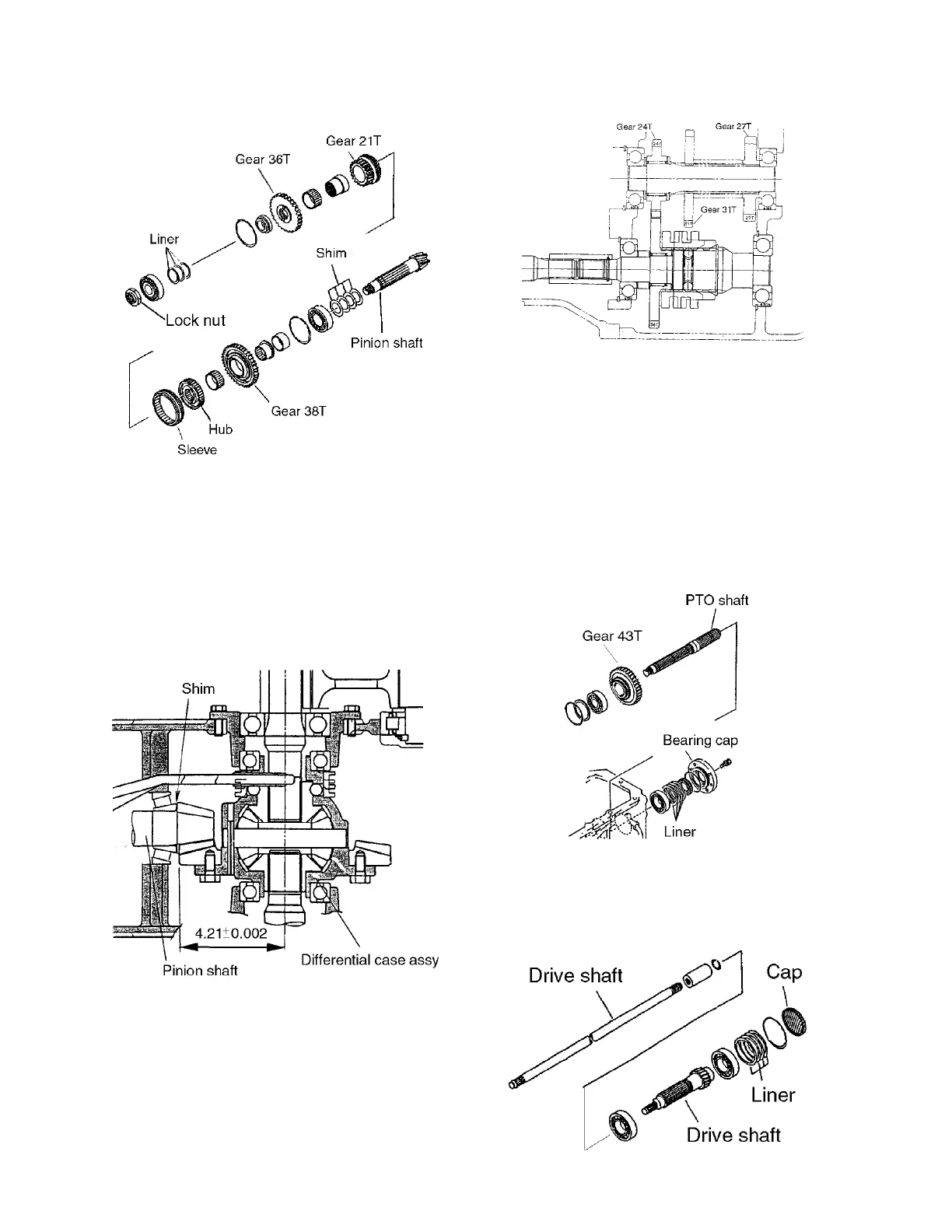

1) Adjust the distance between center of
differential case and rear end of pinion gear
teeth to [4.21 0.002in.] by shim. (At least
one [0.031in.] thickness of shim is installed
at factory.)
-1961 9010 000-Special Tool parts No.
2) Adjust end play at pinion shaft to
[0.002~0.079 in.] by liner.
3) Adjust the pre-load at pinion shaft to
[0.72~0.94 lbf•ft]by tightening the nut and
calk the nut.
+
_
4. 4WD Shaft
(3) PTO SHAFT REINSTALLATION
*Reinstall the PTO shaft with reverse
procedure of removal. Use following values
as adjustment and service standard for
reinstallation.
1. PTO Shaft
1) Adjust the end play at PTO shaft to
[0.002~0.079 in.] by liner.
2. PTO Drive Shaft
Adjust the end play at PTO drive shaft to
[0.002~0.079 in.] by liner.
