18

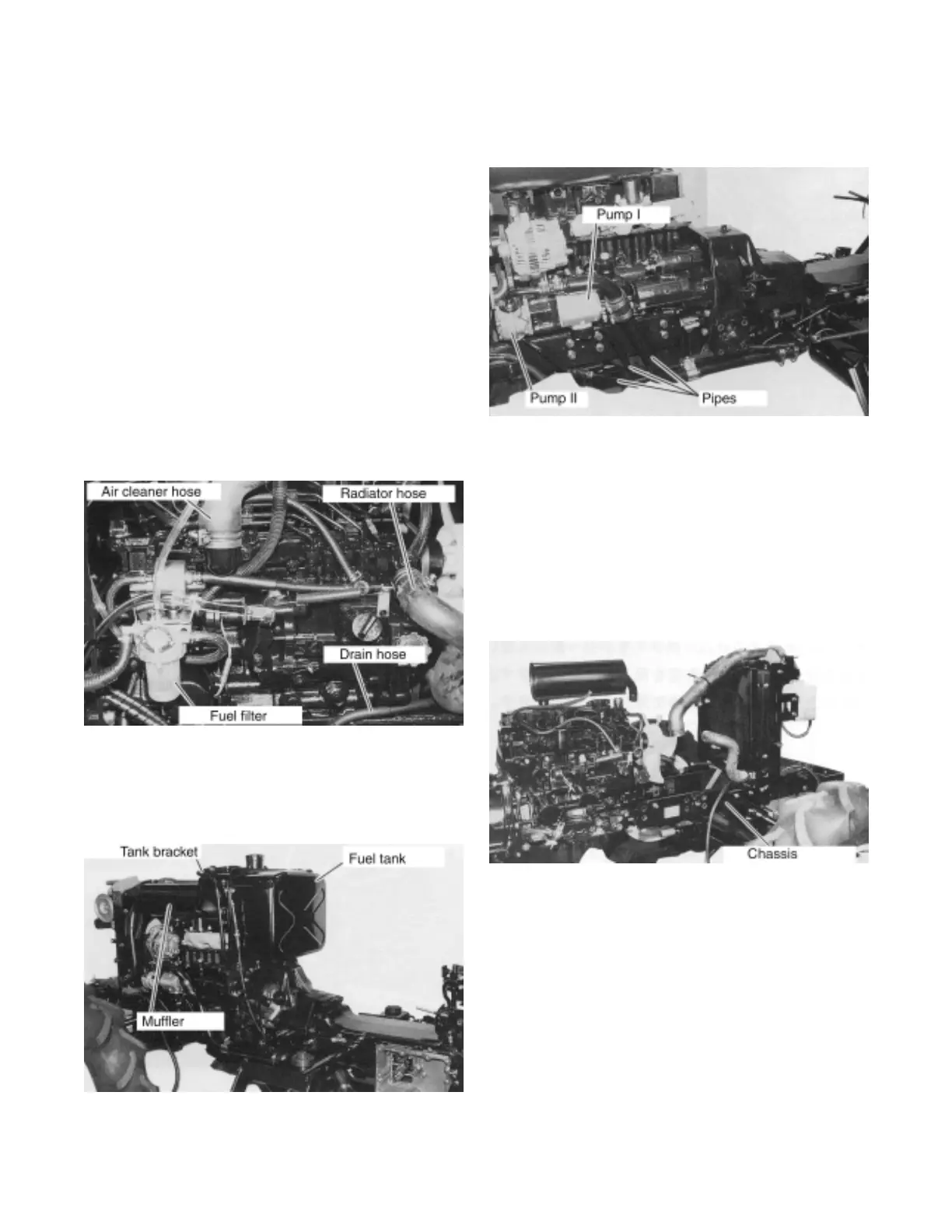

(3) ENGINE REMOVAL
1. Drain the coolant from radiator and drain the
transmission oil.
2. Remove the 4WD Shaft. (See Page 13)
3. Remove the panel Assy. (See Page 17)
4. Remove the fuel hose at fuel filter and drain
the fuel.
5. Remove the air cleaner hose, radiator hoses
(2 hoses) and coolant drain hose from engine.
6. Remove the fuel tank bracket and fuel tank.
7. Remove the muffler from engine
8. Remove the suction and pressure pipe from
pump I and II.
9. Put the jack under the transmission case to
support and remove the chassis mounting
bolts.
10. Pull the chassis together with front axle assy
to front and remove it from engine.
11. Lift the engine by hoist and remove the
engine mounting bolts between engine rear
plate and clutch housing.
12. Remove the engine from clutch housing.
To Next Page
