(3)IDLER R.P.M SETTING
Make sure that the valve clearance and
injection timing are correct and that the fuel
injection nozzles have no defect.
(1)Start and run the engine at low idle until
the coolant temperature above 60 C
(140 F).
(2)To set the low idle rpm, loosen the lock
nut for the idling set bolt and turn the set
bolt to make the engine run at the
specified rpm. Tighten the lock nut.
(3)To set the high idle rpm, loosen lock
nut for the high-idle set bolt and turn the
set bolt to make the engine run at the
specified rpm. Tighten the lock nut.

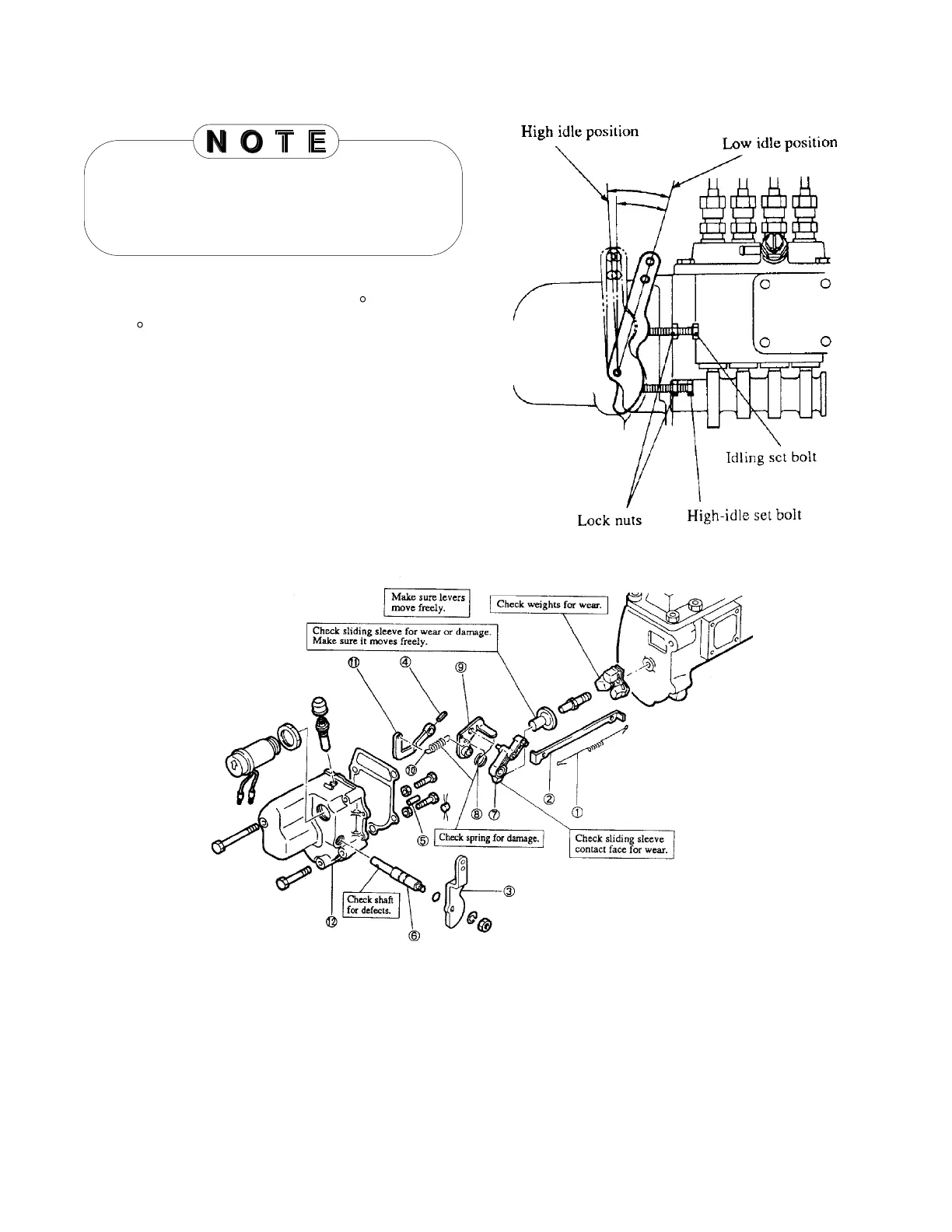

Disassembly sequence and inspection points
(1)Tie rod spring
(2)Tie rod
(3)Speed control lever
(4)Spring pin
(5)Grooved pin
(6)Governor shaft
(Remove (7) thru (11) as an assembly.)
(7) Governor lever
(8) Start spring
(9) Tension lever
(10) Governor spring
(11) Governor spring lever
(12) Governor case
