21

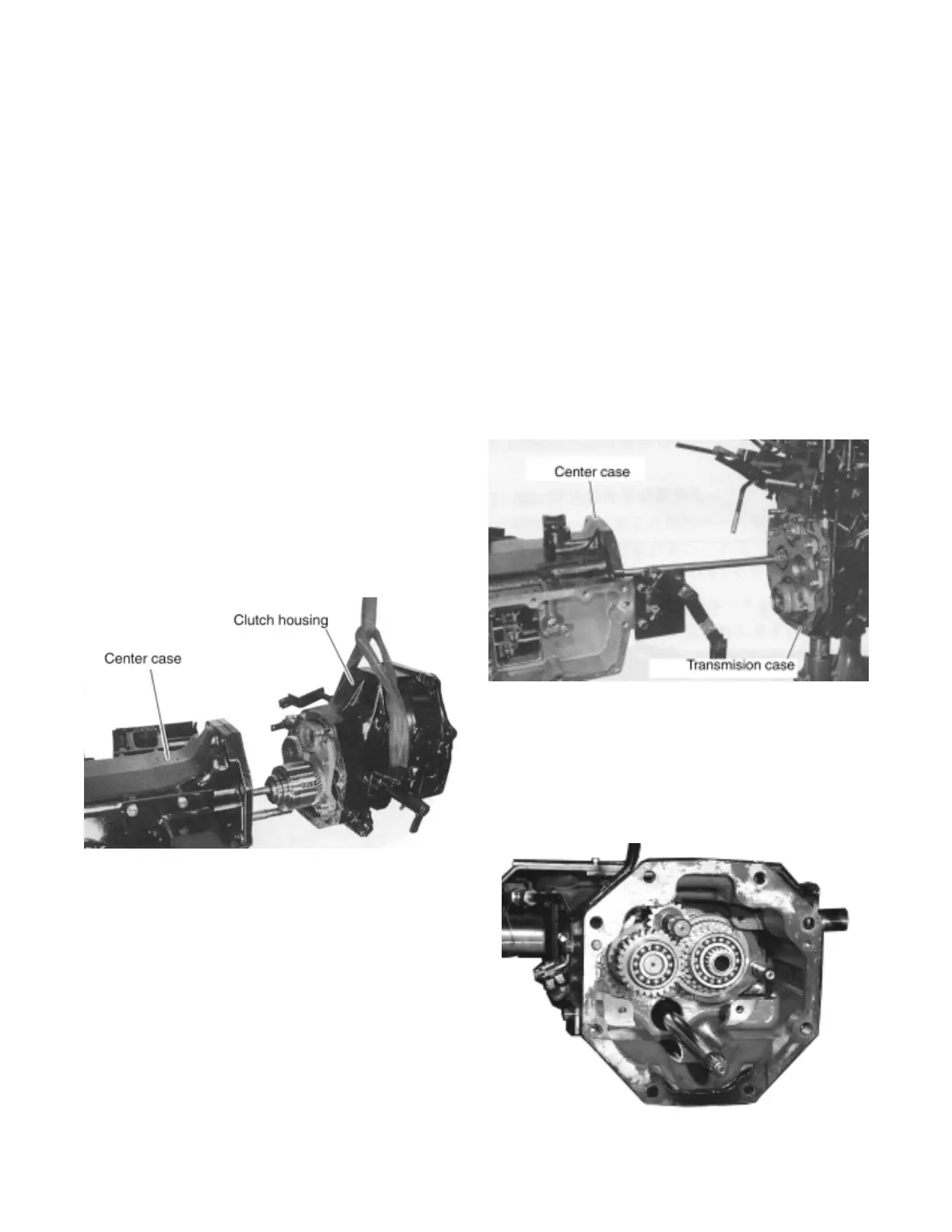

3-1. HOUSINGS REMOVAL
(1) CLUTCH HOUSING REMOVAL
1. Remove the fixing bolts between clutch
housing and center case.
2. Lift the clutch housing and remove it from
center case.
(2) CENTER CASE REMOVAL
1. Remove the fixing bolts between center
case and transmission case.
2. Remove the main shift lever linkages.
3. Lift the center case and remove it from
transmission case.
3. CLUTCH HOUSING, TRANSMISSION CASE, REAR AXLE
CASE AND HYDRAULIC LIFT CASE REMOVAL AND
REINSTALLATION
