134
4. Disassemble diff. case assy.
1) Remove bearings from diff. case.
2) Remove fixing bolts of ring gear (4) and
remove ring gear from diff. case (3).
3) Remove spring pin and remove shaft,
pinions (6), side gears (5) and liners from diff.
case.
1. Remove fixing bolts of king pin case assy and
remove king pin case assy .
2. Remove fixing bolts of arm holder (11) and
remove arm holder (11) from king pin case (1).
3. Remove fixing bolts of cover (12) and remove
cover (12) from king pin case (1).
4. Remove king pin shaft (2), liners (3), bearings
(13),(14),gear 18T and gear 13T from king
pin case (1).
1. Remove gear 14T (8) , bearing (15) and diff.
shaft (7).
2. Remove fixing bolts of center case L.H. (2)
and R.H. (1) and divide center case L.H. and
R.H..
3.
Remove diff. case assy from center case
R.H. (1).

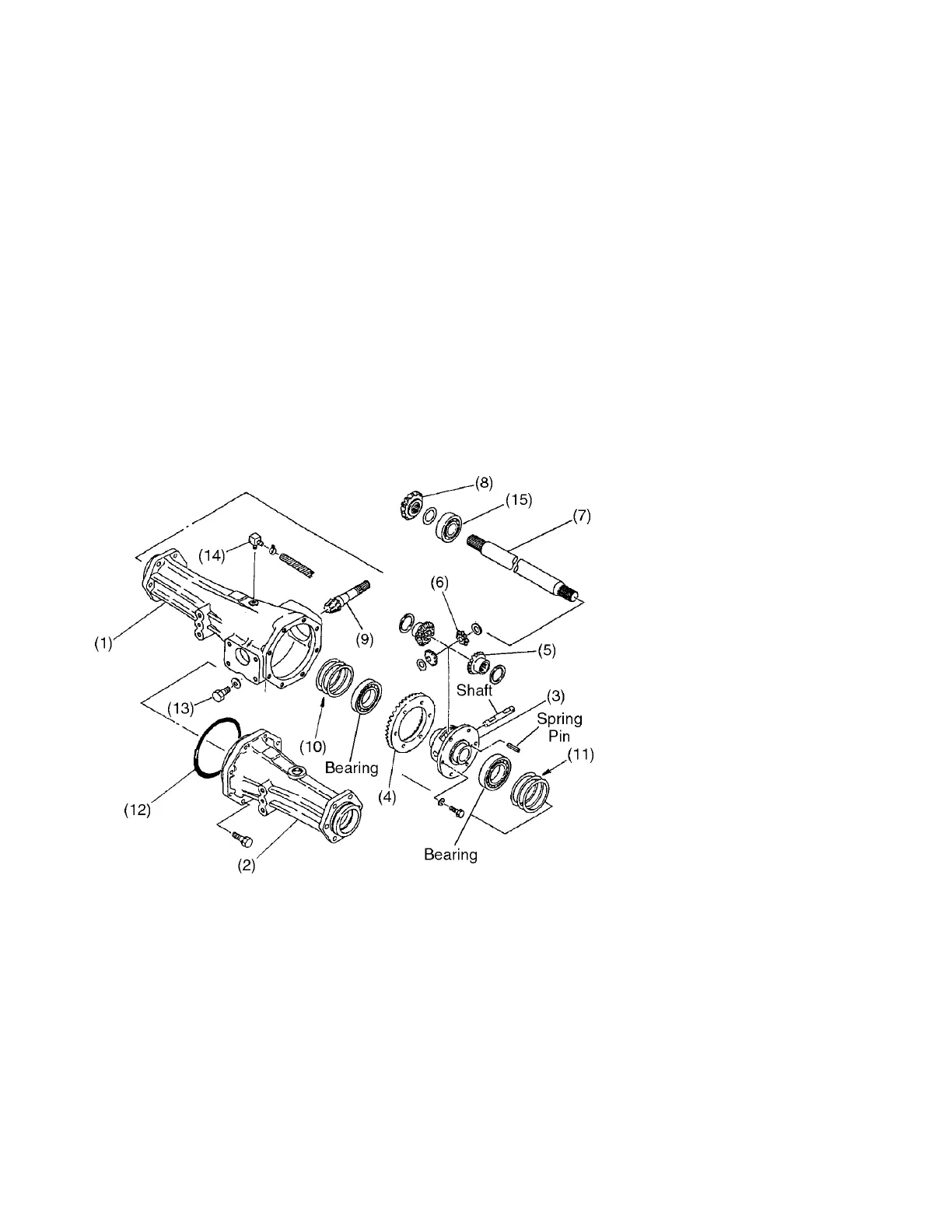

(3) CENTER CASE, DIFF. CASE DISASSEMBLING
(1)CENTER CASE R.H.
(2)CENTER CASE L.H.
(3)DIFFERENTIAL CASE
(4)RING GEAR
(5)SIDE GEAR
(6)PINION
(7)DIFFERENTIAL SHAFT
(8)GEAR 14T
(9)PINION SHAFT
(10)LINER
(11)LINER
(12)O-RING
(13)DRAIN PLUG
(14)JOINT
(15)BEARING DIFFERENTIAL
CASE
