64

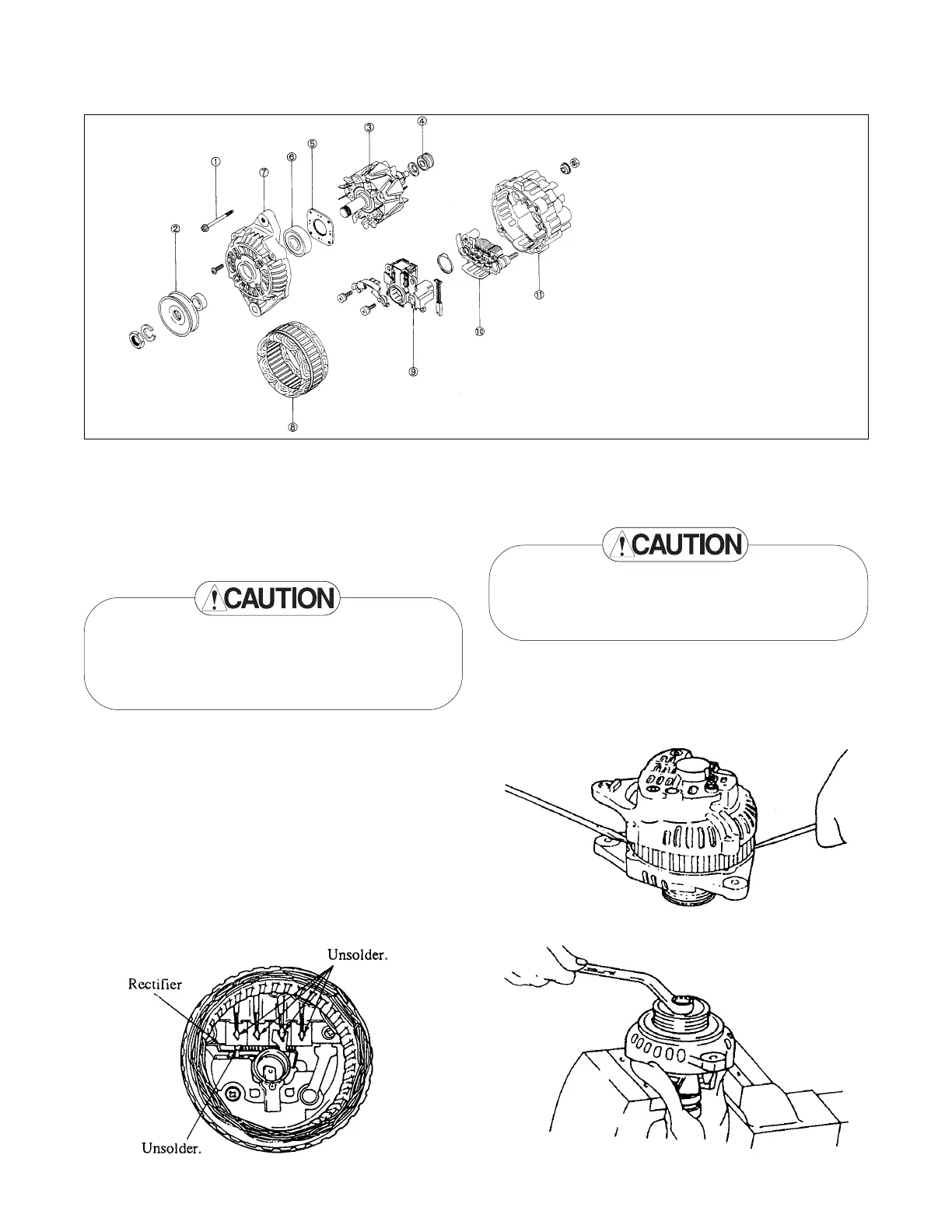

2. Alternator
Disassembly procedure
(1)Stator core separation from front bracket
(a)Pry the stator core off the front bracket
with a screwdriver as shown in the
illustration.
Be careful not to insert the screwdriver too
deep. Damage to the stator core can be the
result.
(2)Pulley removal
(a)Hold the rotor assembly in a vise by
using thick cloth as shown in the illus-
tration. Remove the nut that holds the
pulley in position, and remove the
pulley and spacer.
(b)Remove the rotor assembly from the
front bracket.
(1)through bolts
(2)pulley
(3)rotor
(4)rear bearing
(5)bearing retainer
(6)front bearing
(7)front bracket
(8)stator core
(9)brush holder
(10)rectifier
(11)rear bracket
(3)Stator core and rectifier removal
(a)Unsolder the leads from the rectifier and
remove the stator core from the rectifier.
Unsolder the leads as quickly as possible to
prevent damage to the diodes in the rectifier.
(b)Remove the screws that hold the
rectifier in position and remove the
rectifier.
