127
7-3. BRAKE CONTROL DISASSEMBLING
(1) BRAKE (LH) DISASSEMBLING
1. Disconnect the rod (7) between brake link
L.H. (6) and L.H. brake arm.
2. Remove the return spring from brake pedal
L.H. (2) and R.H.. Remove joint (4) to discon
nect the brake rod from brake pedal L.H. (2)
and brake link L.H. (6), brake pedal R.H. and
brake link R.H.
3. Remove the spring pin and remove the brake
pedal L.H. (2), R.H. and brake shaft (1) from
bracket.
4. Remove snap ring from link shaft (5).
5. Remove fixing bolts of link shaft and remove
link shaft (5).
(3) BRAKE ASSY REMOVAL
1. Remove fixing bolts of holder (6).
2. Remove arm (3).
3. Remove brake Assy (4-5).

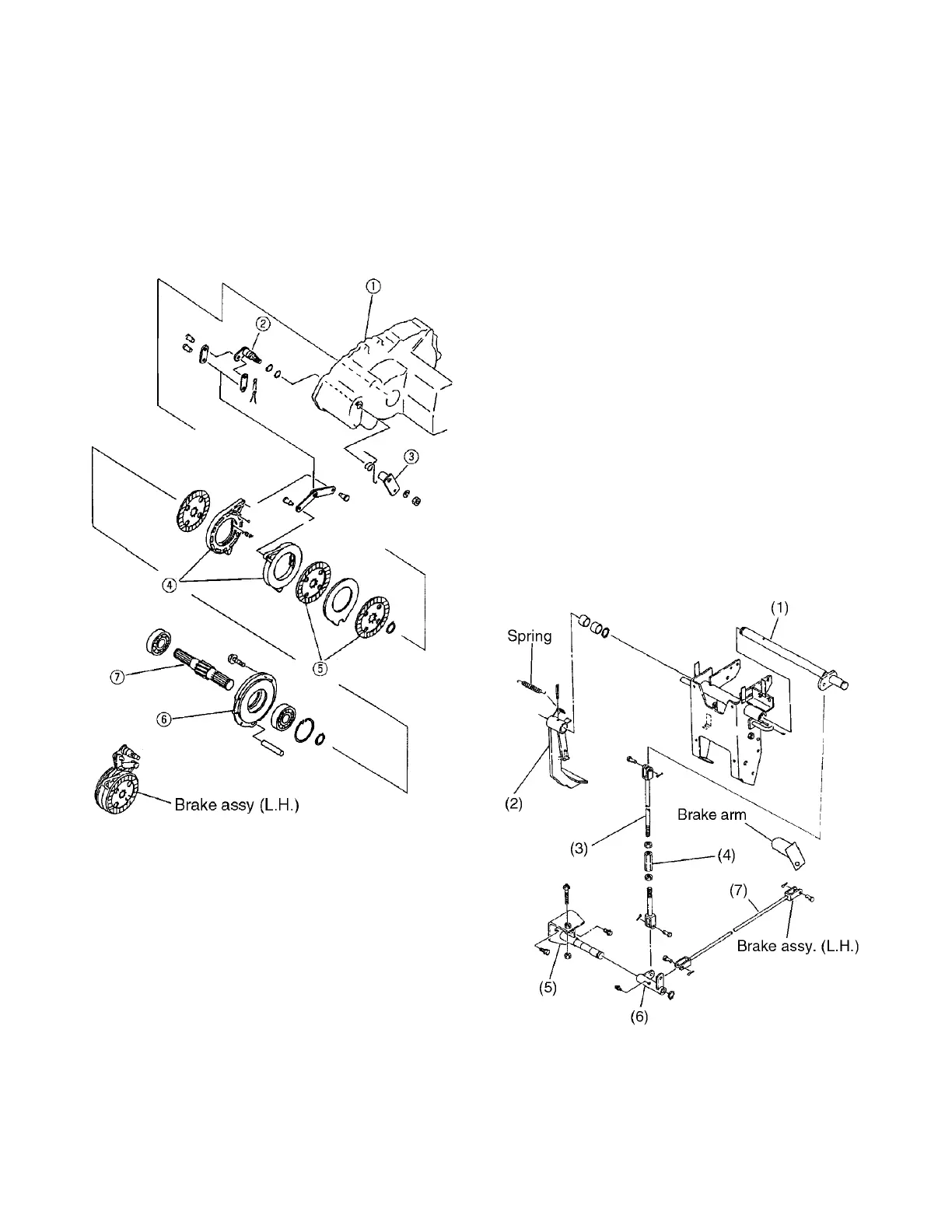

(1)CASE L.H.
(2)LEVER
(3)ARM
(4)COM PLATE
(5)BRAKE DISK
(6)HOLDER
(7)SHAFT
(1)BRAKE SHAFT (4)JOINT
(2)ROD (5)LINK SHAFT
(3)BRAKE PEDAL R.H. (6)BRAKE LINK L.H.
(7)ROD
To Next Page
