3. Position control lever reassembling
1) Fix the handle stopper and place the
position control lever to the highest position.
2) Adjust the play Fat top position of lift arm to
be [0.197~0.394in.] by adjusting the
rod (A) length.
4. Flow control valve reassembling
1) Adjust the height of plate (7) by shim (1 and
2) to turn the screw (4) smoothly.
2) Tightening torque of sleeve (8)
[61.48~68.71lbf•ft]
3) Adjust the position of plate (5) to obtain the
length of spring (6) to be [0.591~0.669 in.] at
the flow control lock position.

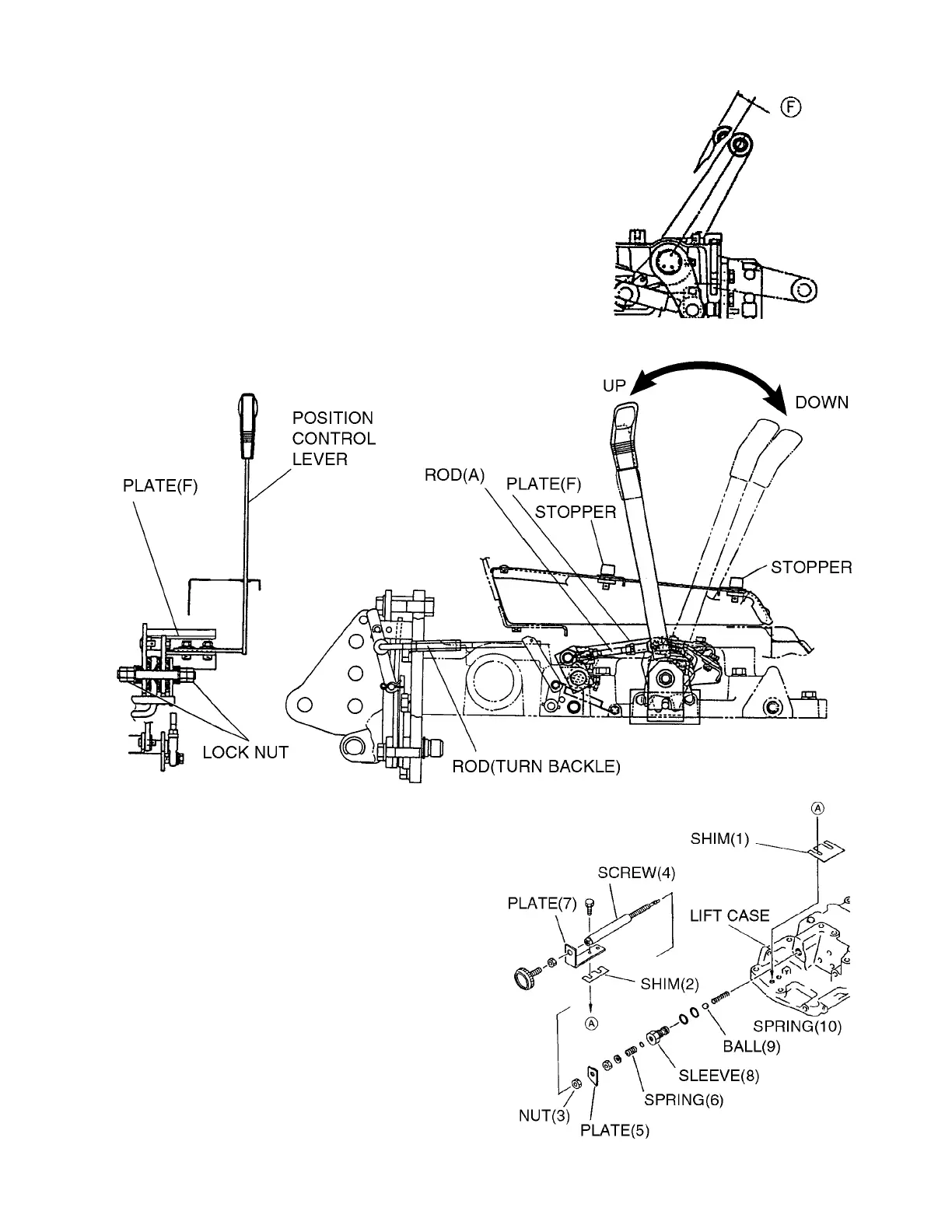

4) Set the clearance between plate (5) and
housing to be [0.236 in.] as shown in the
following drawing.
