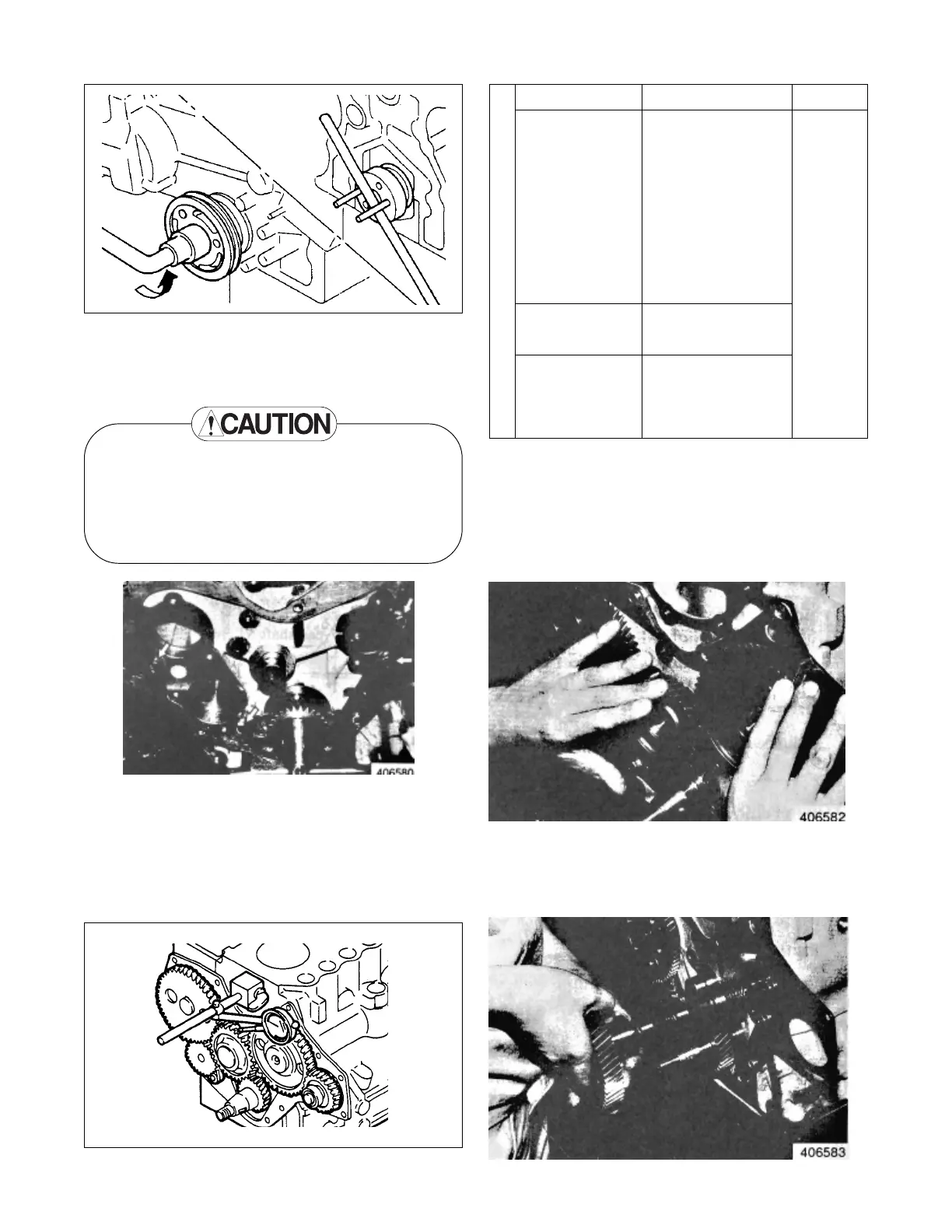

7.Timing gear case removal
Remove the bolts that hold the timing gear
case in position and remove the case.
The front plate is bolted inside the timing
gear case. Do not attempt to remove this
plate along with the timing gear case by
tapping.
9.Idler gear removal
To remove the idler gear, rotate the gear in a
direction of the helix of the teeth to pull it out
of mesh.
10.Camshaft removal
(1)Remove the bolts that hold the thrust plate.
(2)Pull the camshaft out of the cylinder block.
8.Timing gear backlash measurement
Measure the backlash of each gear and
keep a record of it for correct installation.
Replace the gears if the backlash exceeds
the limit.
Timing gear backlash
Item
Crankshaft gear
and idler gear
Idler gear and
camshaft gear
Idler gear and
fuel injection
pump
camshaft gear
Camshaft gear
and P.T.O. gear
Fuel injection
pump camshaft
gear and
oil pump gear
Standard
0.04 to 0.12
(0.0016 to 0.0047)
0.08 to 0.19
(0.003 to 0.0075)
0.007 to 0.20
(0.0028 to 0.0079)
Limit
0.30
(0.0118)
