158
1. Make sure orings are installed on the control
valve before valve installation and apply oil at
o-ring.
10-3. MAIN HYDRAULICS REASSEMBLING
*Reassemble the main hydraulics with
reverse procedure of disassembling.

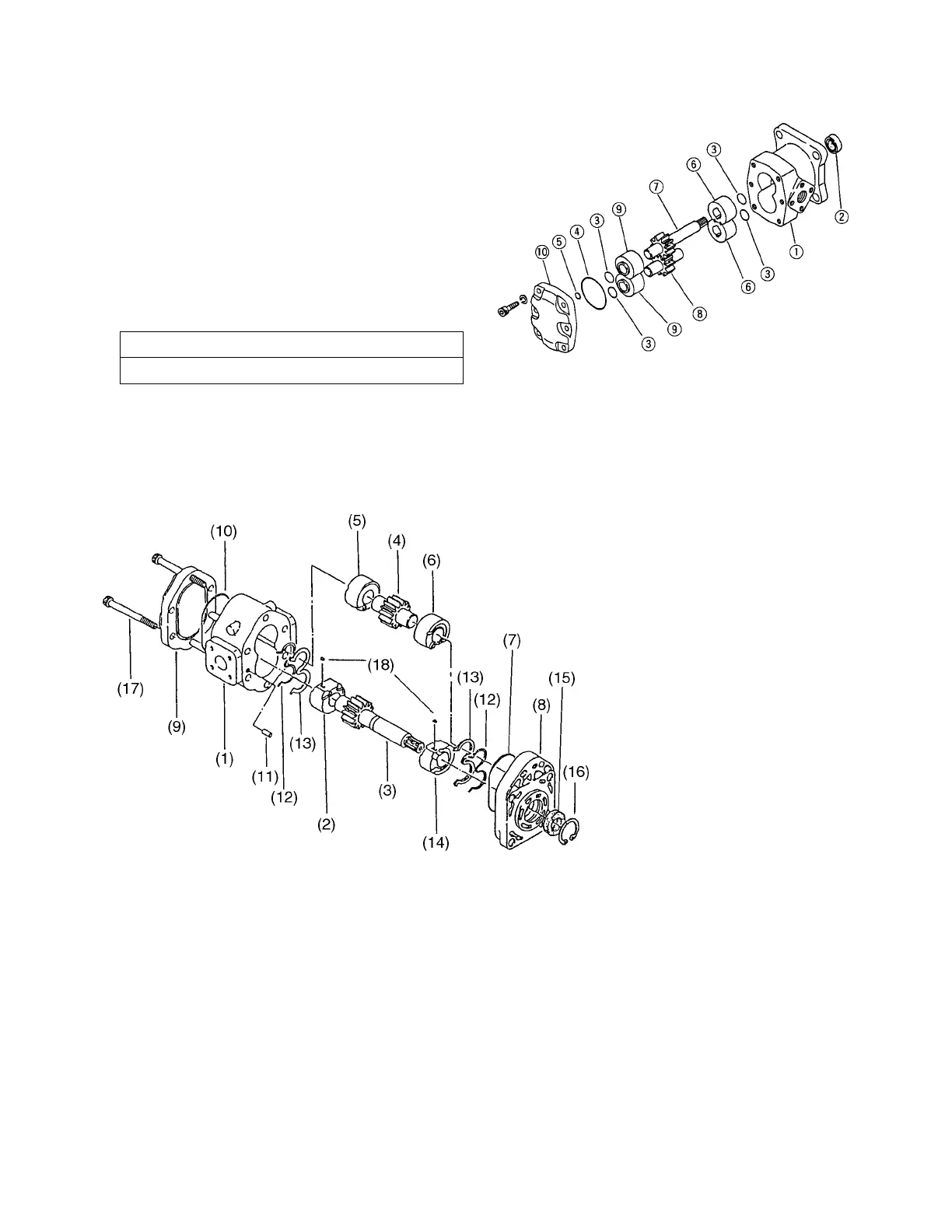

(1) HYDRAULIC PUMPS REASSEMBLING
*Reassemble pump I and II with reverse
procedure of disassembling. Use following
values as adjustment and service standard of
reassembling.
1. Tightening torque of pump bolts.
[18.08~21.7 lbf•ft]
2. Apply oil at o-rings and oil seals for the
assembling.
(2) CONTROL VALVE ASSEMBLING
*Reassemble and reinstall the control valve
with reverse procedure of the disassembling
and removal. Use followin value for
reassembling and reinstallation of control
valve as adjustment and service standard.
(1)HOUSING
(2)BUSHING
(3)DRIVE GEAR
(4)DRIVEN GEAR
(5)BUSHING
(6)BUSHING
(7)O-RING
(8)FRENGE
(9)COVER
(10)O-RING
(11)KNOCK PIN
(12)BACK UP ELEMENT
(13)SEAL ELEMENT
(14)BUSHING
(15)OIL SEAL
(16)C-RING
(17)BOLT
(18)KEY
