128

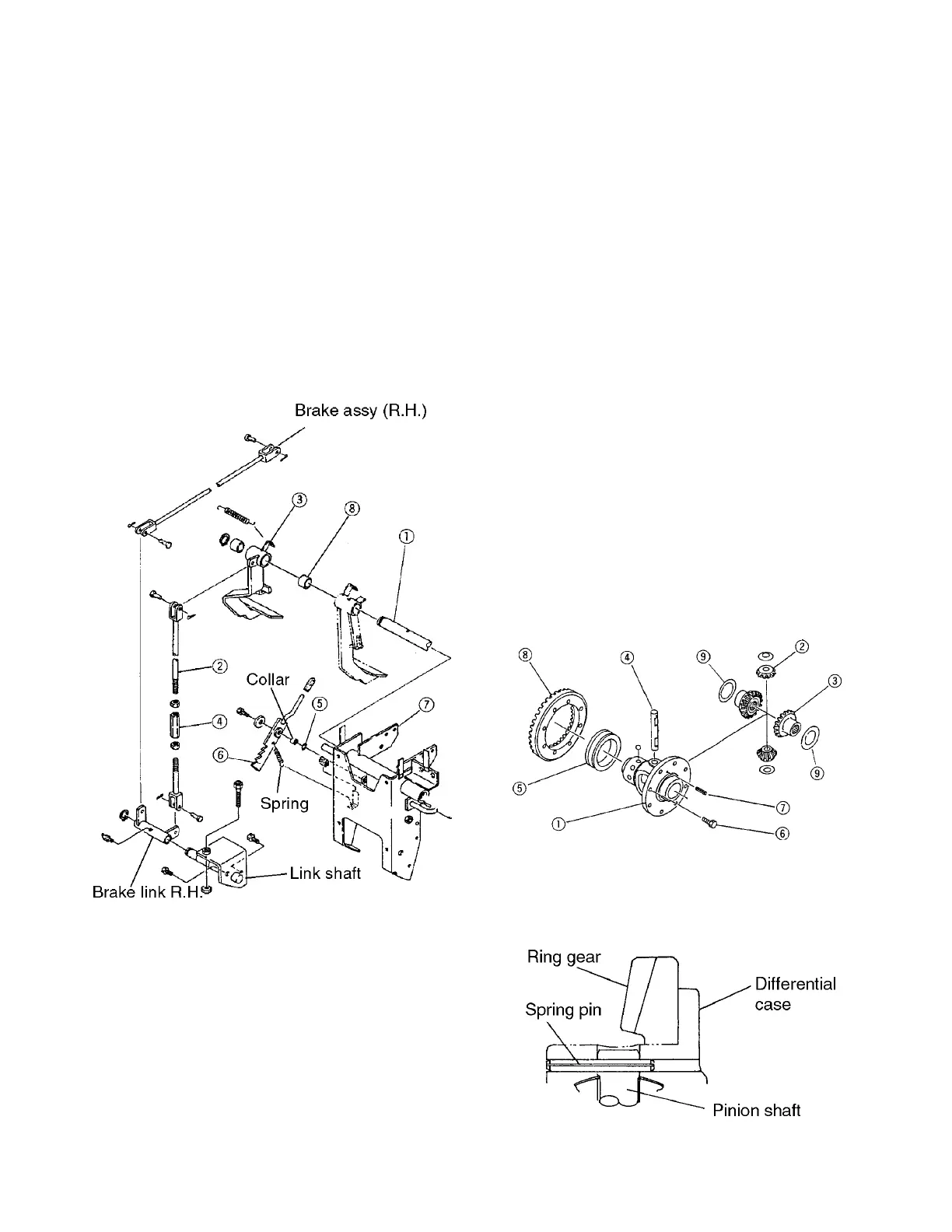

7-4. DIFFERENTIAL CASE ASSY
REASSEMBLING
*Reassemble the differential case assy with
reverse procedure of disassembling.
(1) DIFFERENTIAL CASE ASSY
REASSEMBLING
*Reassemble the differential case assy with
reverse procedure of disassembling.
Use following values for reassembling of
differential case assy as adjustment and
service standard.
1. Adjust the backlash between diff. pinion gear
and diff. side gear to [0.004~0.012 in.] by
adjusting liner (9)
2. Apply bond (threebond #137) to the fixing
bolts of ring gear.
Tightening torque of ring gear fixing bolts;
[30.38~36.17lbf•ft]
3. Install the spring pin in the manner that the
direction of slit comes as shown below.
6. Disconnect the brake rod between brake link
R.H. and R.H. brake lever.
7. Remove snap ring and remove brake link R.H.
from link shaft.
8. Remove fixing bolts of link shaft and remove
link shaft.
9. Remove fixing bolt of parking brake lever (6)
and remove parking brake, collar and spring
from bracket.
(1)BRAKE SHAFT
(2)ROD
(3)BRAKE PEDAL R.H.
(4)JOINT
(5)LINER
(6)PARKING BRAKE LEVER
(7)BRACKET
(8)BUSHING
To Next Page
