145

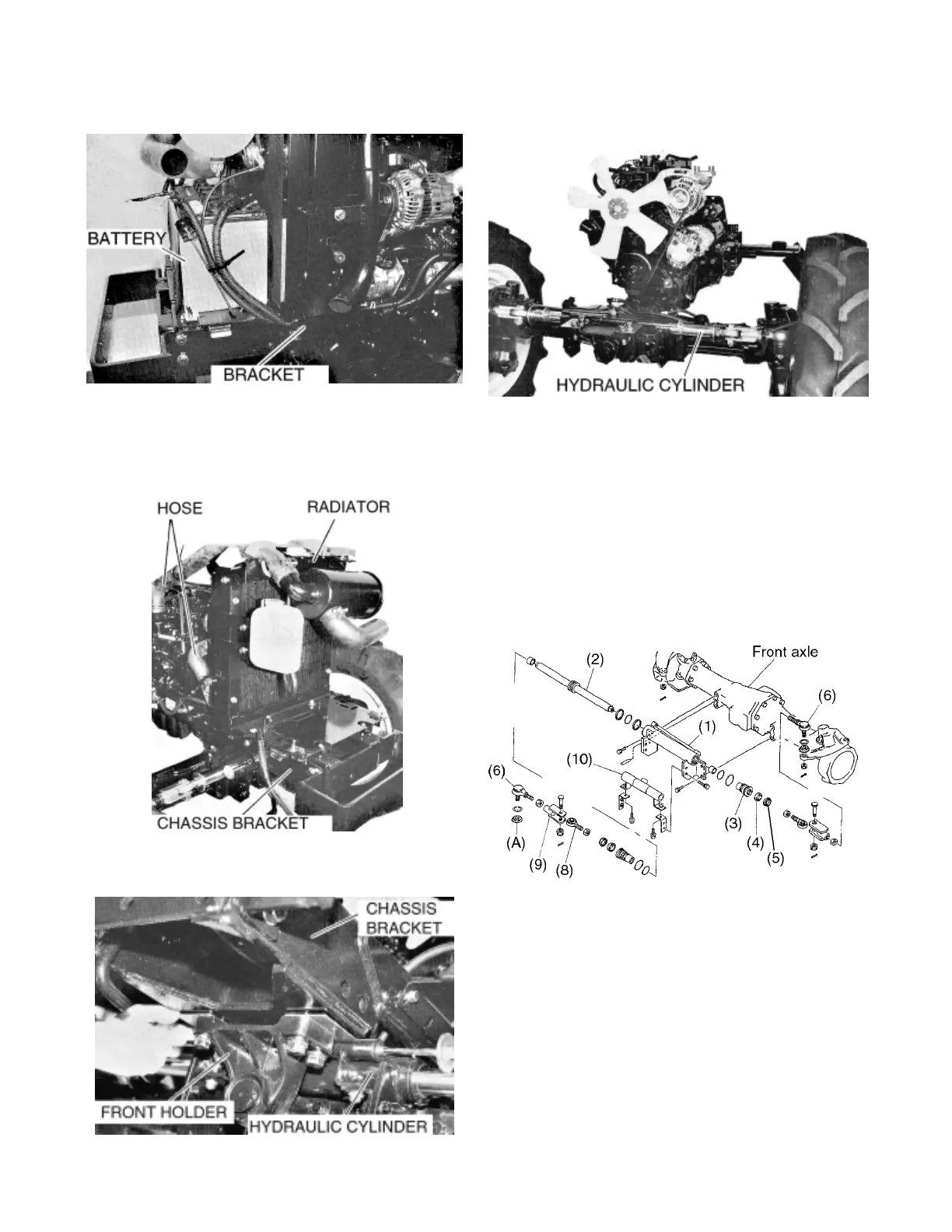

3. Disconnect battery negative code and positive
code. Remove battery.
4. Remove radiator hoses and air cleaner hose
from engine.
5. Remove fixing bolts of front holder.
6. Remove chassis and radiator.
7. Remove hydraulic cylinder assy.
(2) HYDRAULIC CYLINDER ASSY
DISASSEMBLING
1. Remove tie rod end (6) , rod (9), rod end (8)
and packing case (3).
2.
Remove cylinder rod (2) from cylinder tube (1).
To Next Page
