(5)FAN BELT

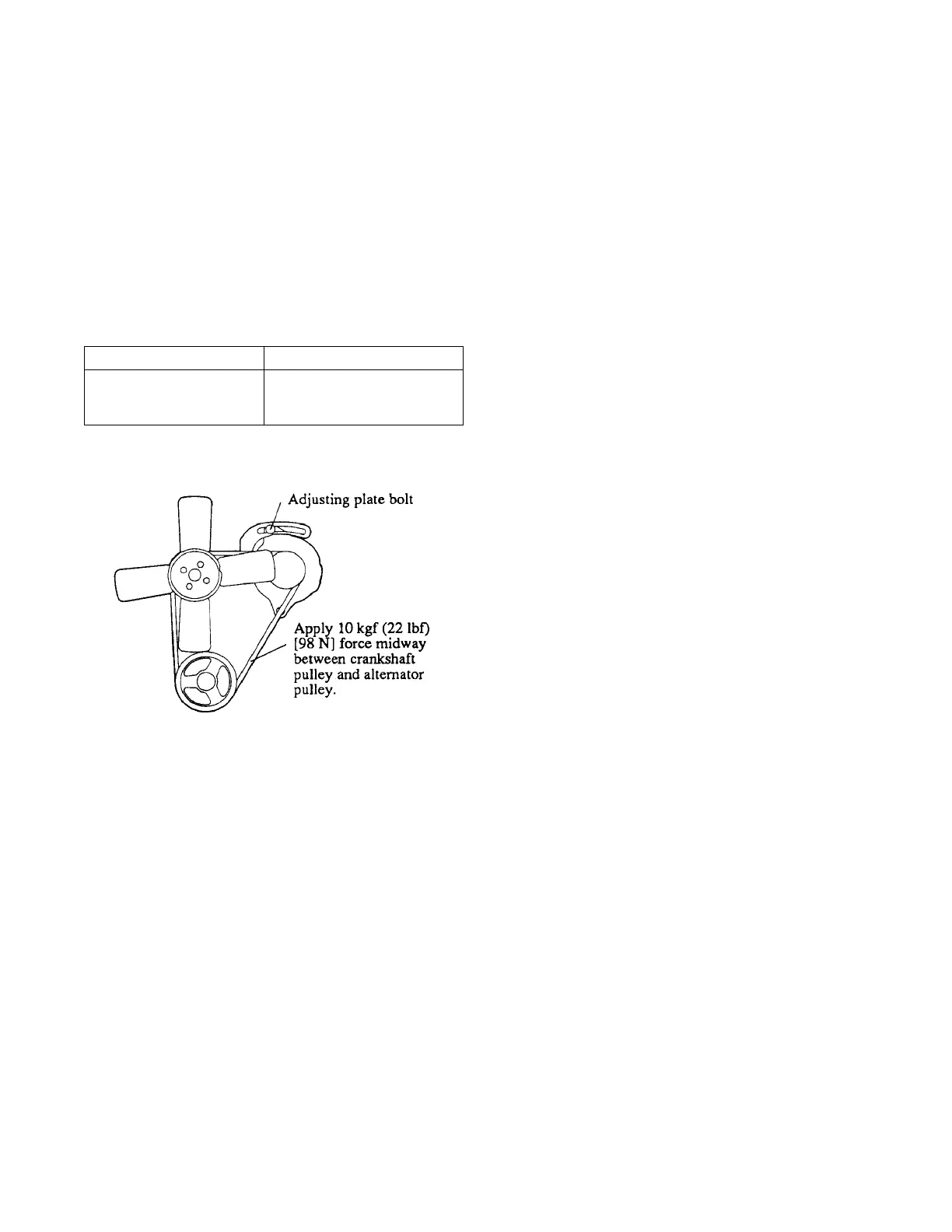

(1)Measure the deflection of the belt. Apply
10 kgf (22 lbf)[98 N] force midway
between the alternator pulley and the
crankshaft pulley.
(2)Adjust the belt if the deflection is not
correct. Loosen the adjusting bolt and
move the alternator to obtain the required
belt deflection.
Unit: mm(in.)
Item Standard
Deflection 10 to 12
(0.4 to 0.5)
