(13)FUEL SYSTEM REINSTALLATION

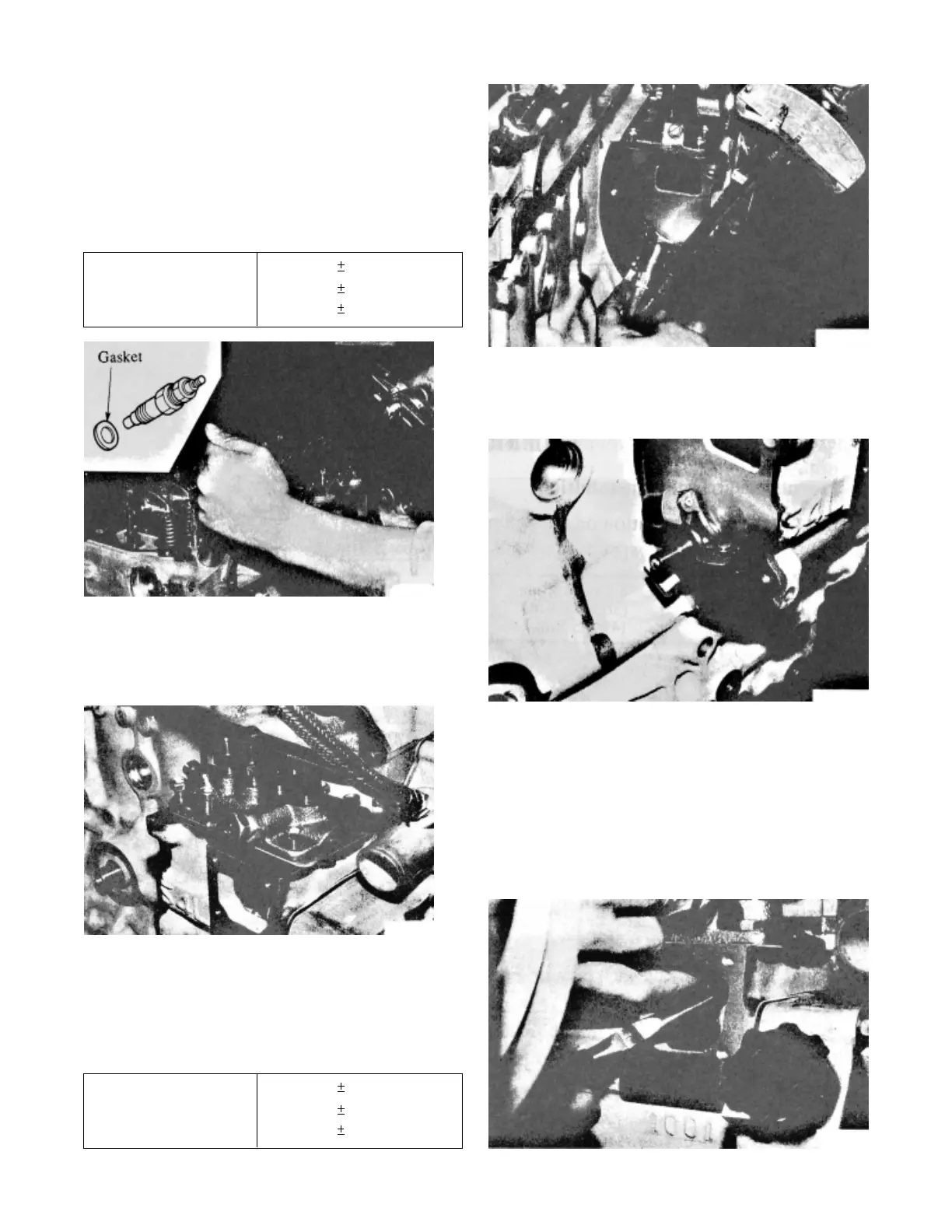

1.fuel injection nozzle installation
(1)Put the gasket on the nozzle.
(2)Put the nozzle assembly in position in the
cylinder head and tighten it to the speci-
fied torque.
2.Fuel injection pump installation
Put the pump in position on the cylinder block
and tighten the bolts that hold the pump to the
specified torque.
3.Flyweight assembly installation
Put the flyweight assembly in position on the
rear end of the fuel injection pump camshaft
and tighten the sliding sleeve shaft to the
specified torque.
4.Sliding sleeve installation
Install the sliding sleeve on the sliding sleeve
shaft and make sure the sleeve moves freely.
5.Governor assembly installation
(1)Install the governor assembly in position
while putting the tie rod and spring into
position in the injection pump.
(2)Install the tie rod to the pin of the control
rack and secure it with the tie rod spring.
(3)Install the tie rod cover in position.
5.5 0.5 kgf•m
(40 4 lbf•ft)
[54 5 N•m]
Tightening torque
5.5 0.5 kgf•m
(40 4 lbf•ft)
[54 5 N•m]
Tightening torque
