46

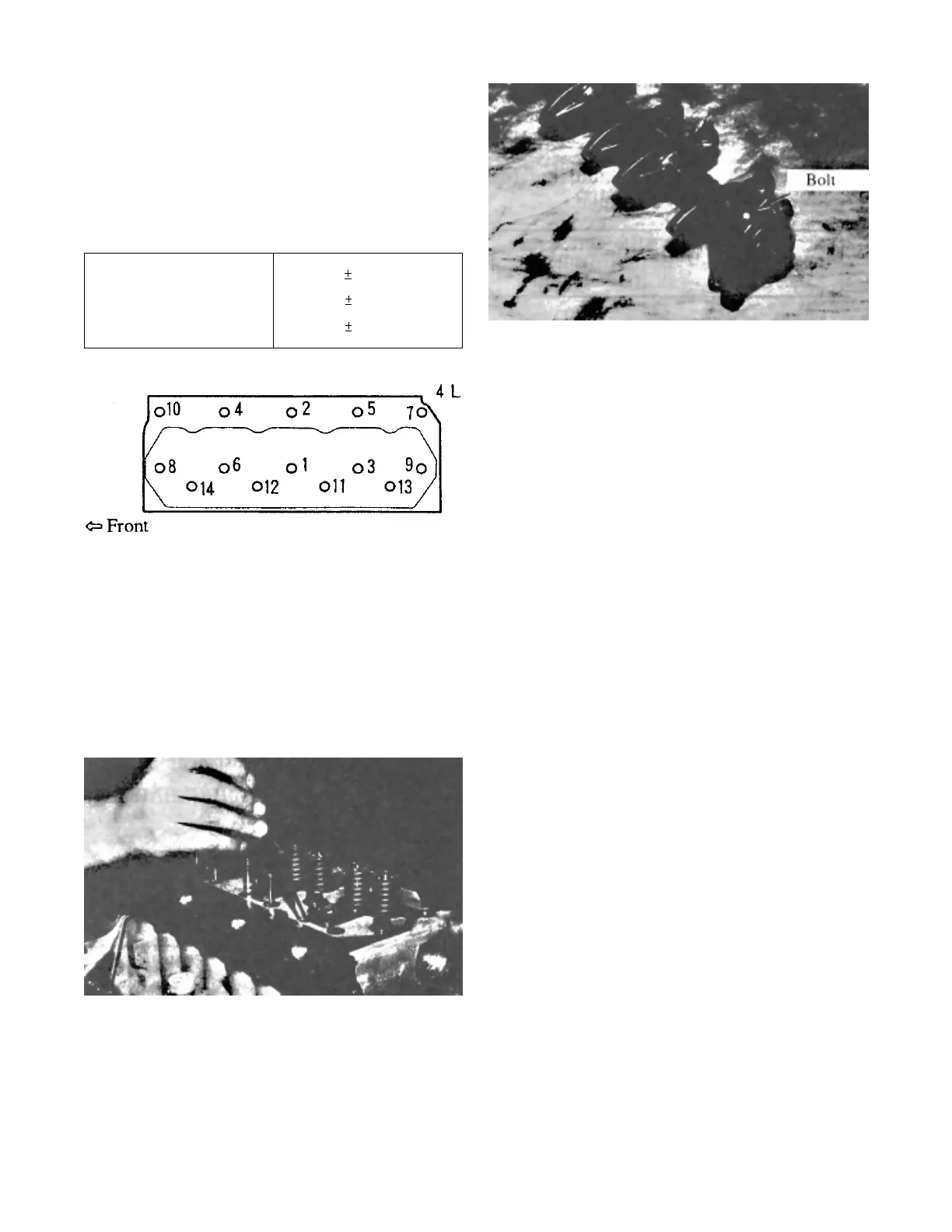

7.Cylinder head bolt tightening
(1)Remove the guide bolts and install the
bolts that hold the cylinder head to the
cylinder block.
(2)Tighten the bolts in number sequence in
two or three steps to the specified torque.
Tightening torque
8.Valve push rod installation
(1)Put the valve push rod into position
through the bore in the cylinder
head.
(2)Make sure the ball end of the push rod has
been put into position over the top of the
tappet.
9.Rocker shaft assembling
(1)Install the rocker arms, brackets and
springs on the rocker shaft. Secure the
brackets to the shaft by tightening the
bolts.
(2)Make sure the rocker arms move freely.
9 0.5 kgf•m
(65 4 lbf•ft)
[88 5 N•m]
To Next Page
