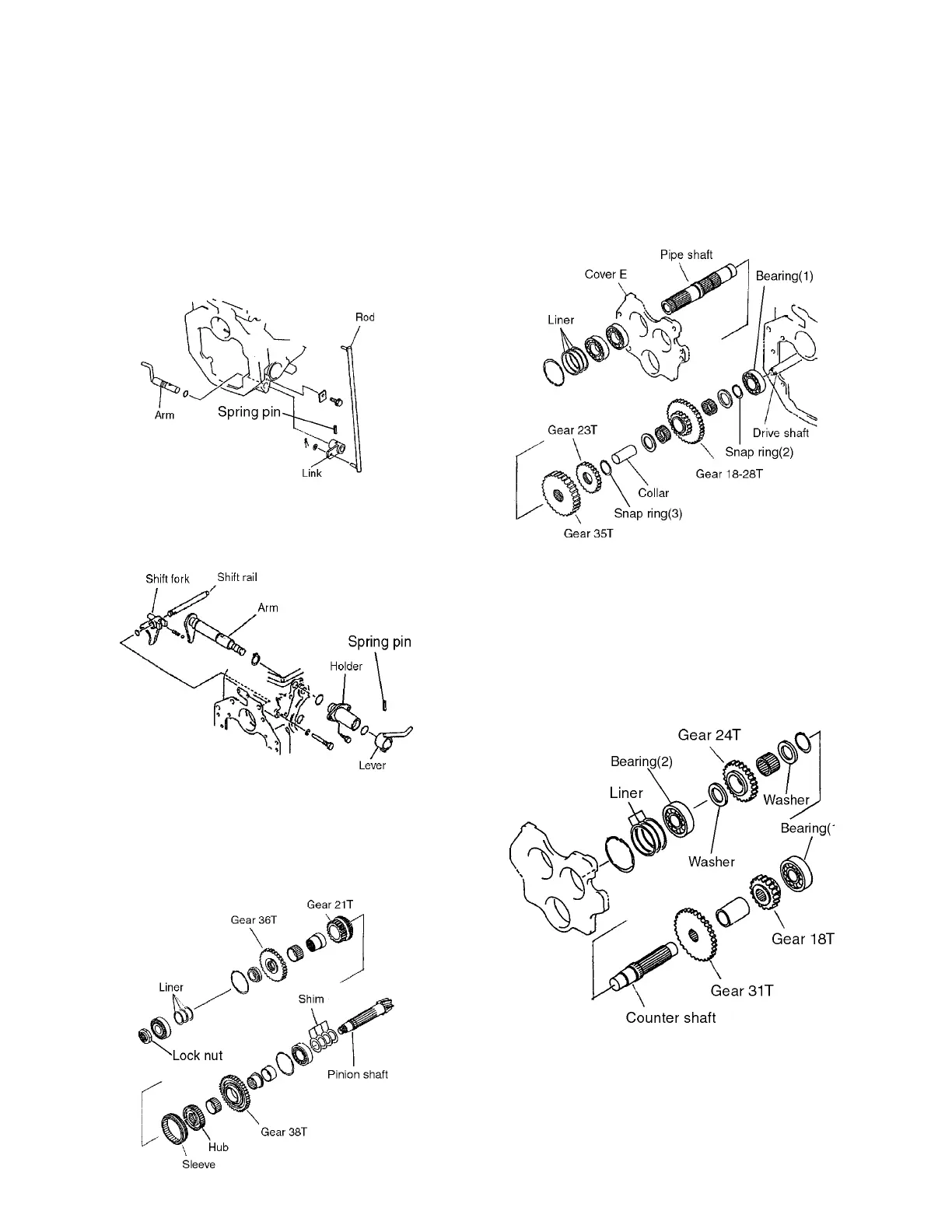

(2) COVER E SUB ASSY REMOVAL
1. Remove 4WD rod and remove fixing bolt of
plate.
2. Remove spring pin at link, and remove link
and arm.
3. Remove fixing bolts of cover E and remove
cover E assy from transmission case.
4.Remove spring pin at lever and remove holder
and arm.
(3) COVER E SUB ASSY DISASSEMBLING
1. Disassemble pinion shaft..
1) Remove lock nut from pinion gear and
remove pinion shaft.
2. Disassemble drive shaft.
1) Move snap ring(3) and remove gear 23T
and 35T from pipe shaft..
2) Remove bearing(1), snap ring(2) from pipe
shaft and remove washers, gear 18-28T and
needle bearing.
3. Disassemble counter shaft
1) Remove bearing (1) and remove gear 18T,
collar and gear 31T from counter shaft.
2) Remove bearing (2) and remove washers,
gear 24T and needle bearing.
