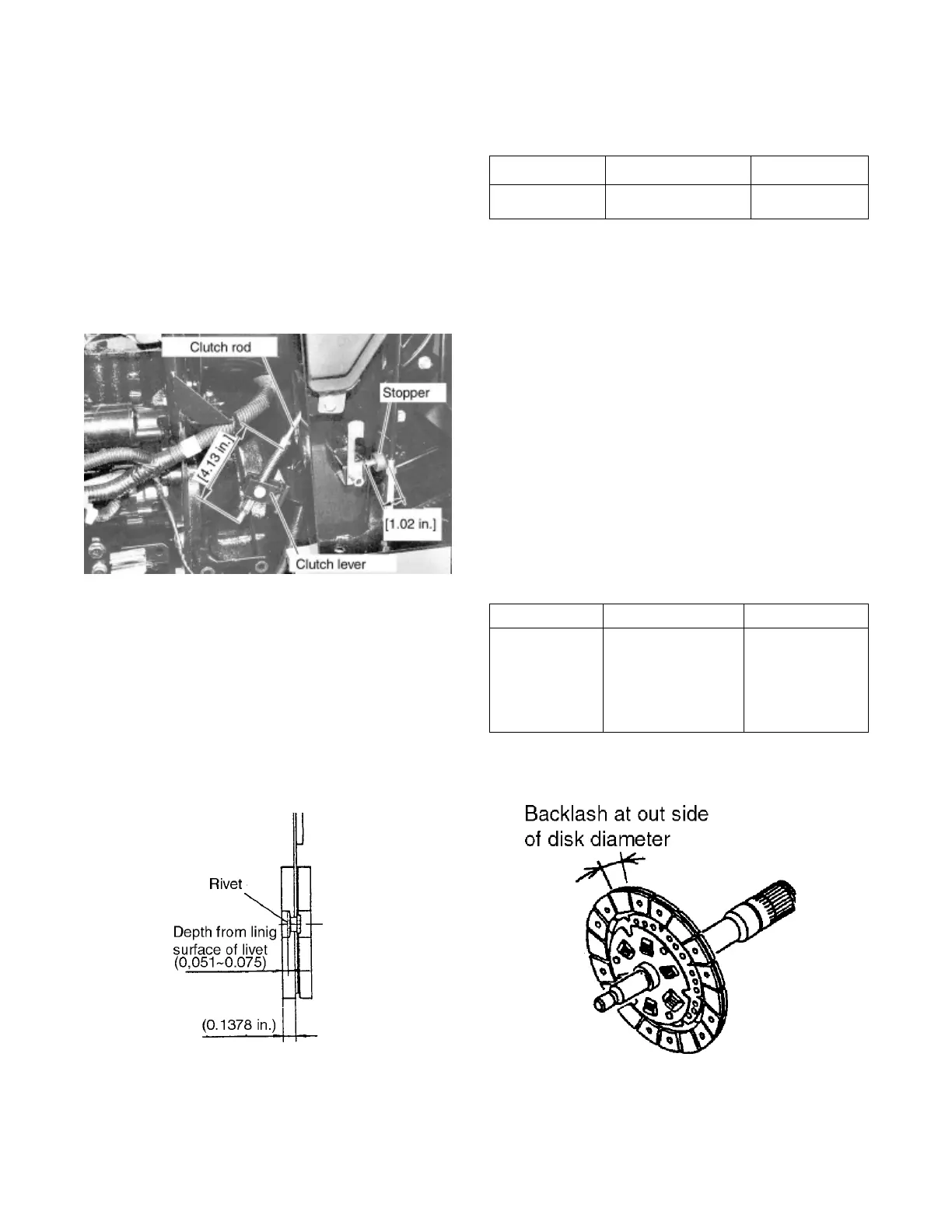

(2) STOPPER ADJUSTMENT
1. Adjust the stopper length and lock the stopper
by lock nut.
Stopper length : [0.79in.]
2. Depress the clutch pedal to the stopper and
make sure the clutch is disengaged
5-4 CHECK AND MAINTENANCE
(1) CLUTCH DISK
1. Measure the depth from clutch lining surface
to rivet.
2. In case that the measurement is out of the
following limit, replace the clutch disk assy.
Item Standard value Service limit
Depth to rivet 0.05 ~0.075 in. 0.012in.
3. In case that the oil is stick to the lining, lining
is carbonized or damaged, replace the clutch
disk and check the cause.
(2) CLUTCH DISK BOSS AND MAIN SHAFT
1. Install the clutch disk to main shaft.
2. Check the backlash at circumference of clutch
disk.
3. In case that the backlash exceed from the
following value, replace the clutch disk.
Item Standard value Service limit
Backlash at
out side of 0.016~0.039in. 0.787in.
disk
diameter
To Next Page
