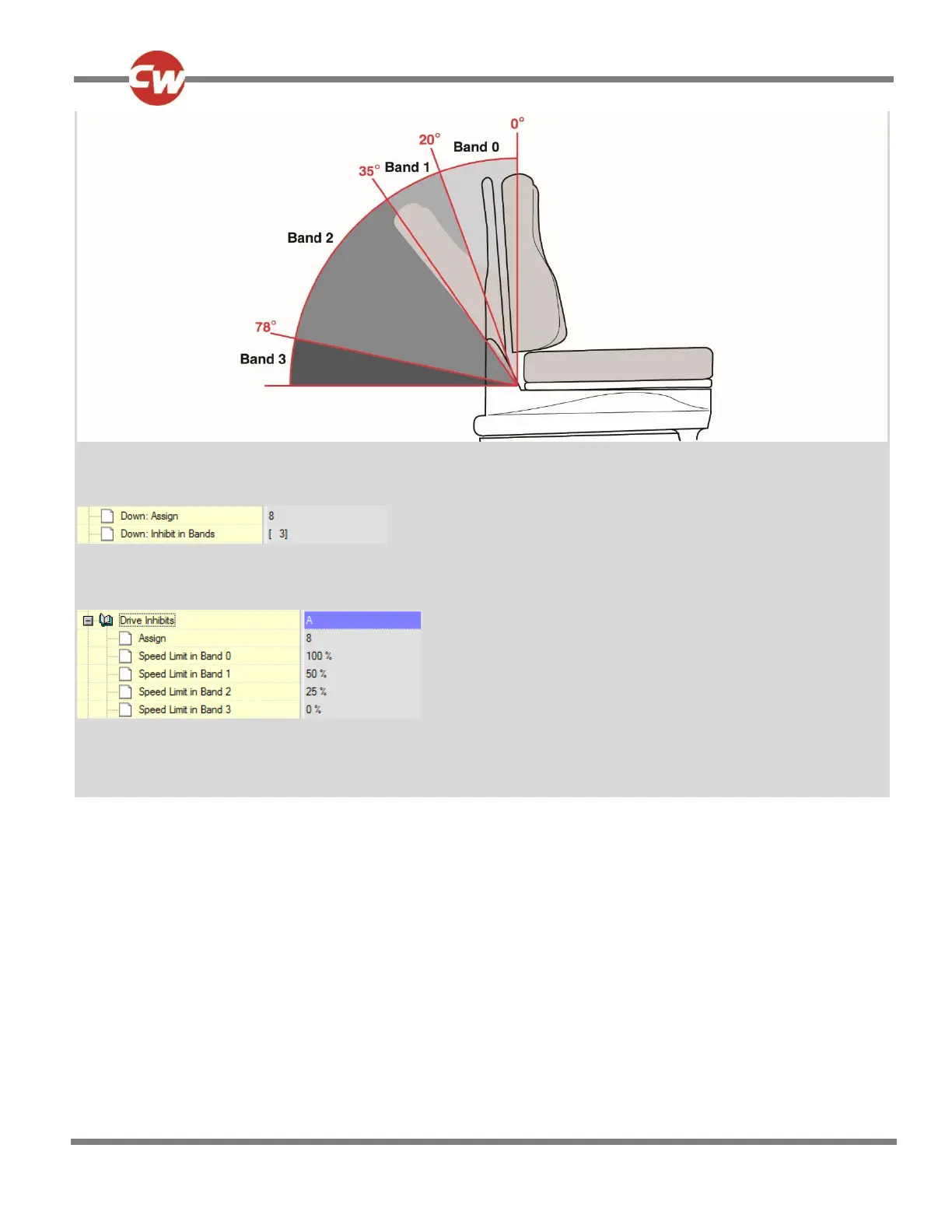

By programming the Actuator Channel 1 Down Inhibit parameters as below, it i s possible to program the maximum angle of
travel of the recline mechanism via Inhibit 8.
This programming means that the Down movement will be inhibited when the Inhibit 8 input is in Band 3, i.e. the recline angle
is greater than 78°.
The inhibit 8 messages can be used by other modules to evoke drive speed limits. In this case a full drive lock out when tilted
greater than 78° in band 3, a reduced speed in bands 2 and 1 when the seat is tilted between 77 ° and 20° and no speed
restriction in band 0 when the angle is less than 19°.
