xStack® DES-3528/DES-3552 Series Layer 2 Managed Stackable Fast Ethernet Switch Web UI Reference Guide
180

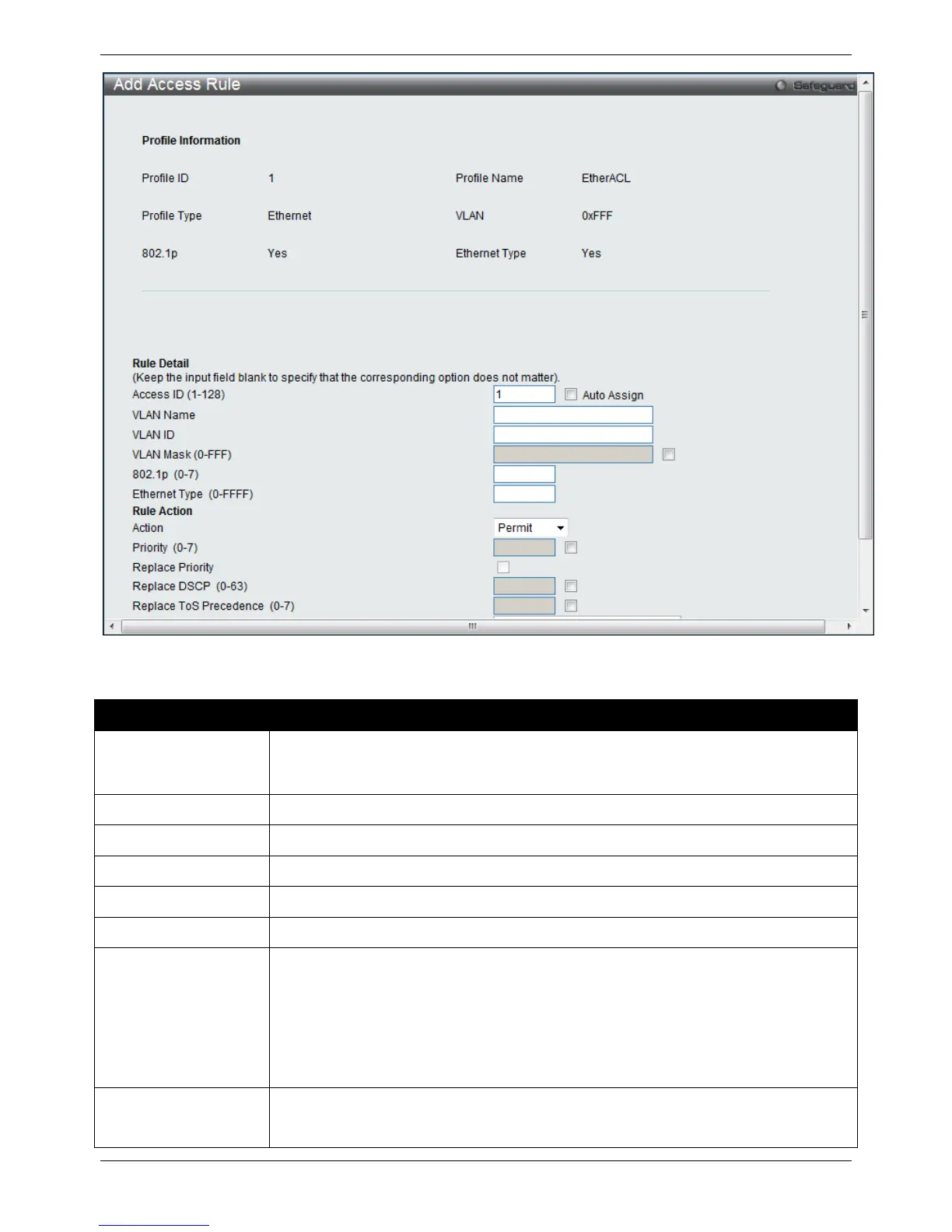

Figure 7-6 Add Access Rule window (Ethernet ACL)
The fields that can be configured are described below:
Parameter Description
Access ID (1-128) Type in a unique identifier number for this access. This value can be set from 1 to 128.
Tick the Auto Assign check box to instruct the Switch to automatically assign an
Access ID for the rule being created.
VLAN Name
Specify the VLAN name to apply to the access rule.
VLAN ID
Specify the VLAN ID to apply to the access rule.
VLAN Mask
Select and enter the VLAN mask value used here.
802.1p
Enter the 802.1p priority tag value used here. This value must be between 0 and 7.
Ethernet Type
Enter the Ethernet type value used here.
Action Select Permit to specify that the packets that match the access profile are forwarded by
the Switch, according to any additional rule added (see below).
Select Deny to specify that the packets that match the access profile are not forwarded
by the Switch and will be filtered.
Select Mirror to specify that packets that match the access profile are mirrored to a port
defined in the config mirror port command. Port Mirroring must be enabled and a target
port must be set.
Priority (0-7)
Tick the corresponding check box if you want to re-write the 802.1p default priority of a
packet to the value entered in the Priority field, which meets the criteria specified
