3A – 4IAUTOMATIC TRANSAXLE DRIVE AXLE
DAEWOO V–121 BL4
MAINTENANCE AND REPAIR
ON–VEHICLE SERVICE
DRIVE AXLE ASSEMBLY
Tools Required
KM–507–B Ball Joint Separator
KM–460–A Axle Shaft Remover
Removal Procedure

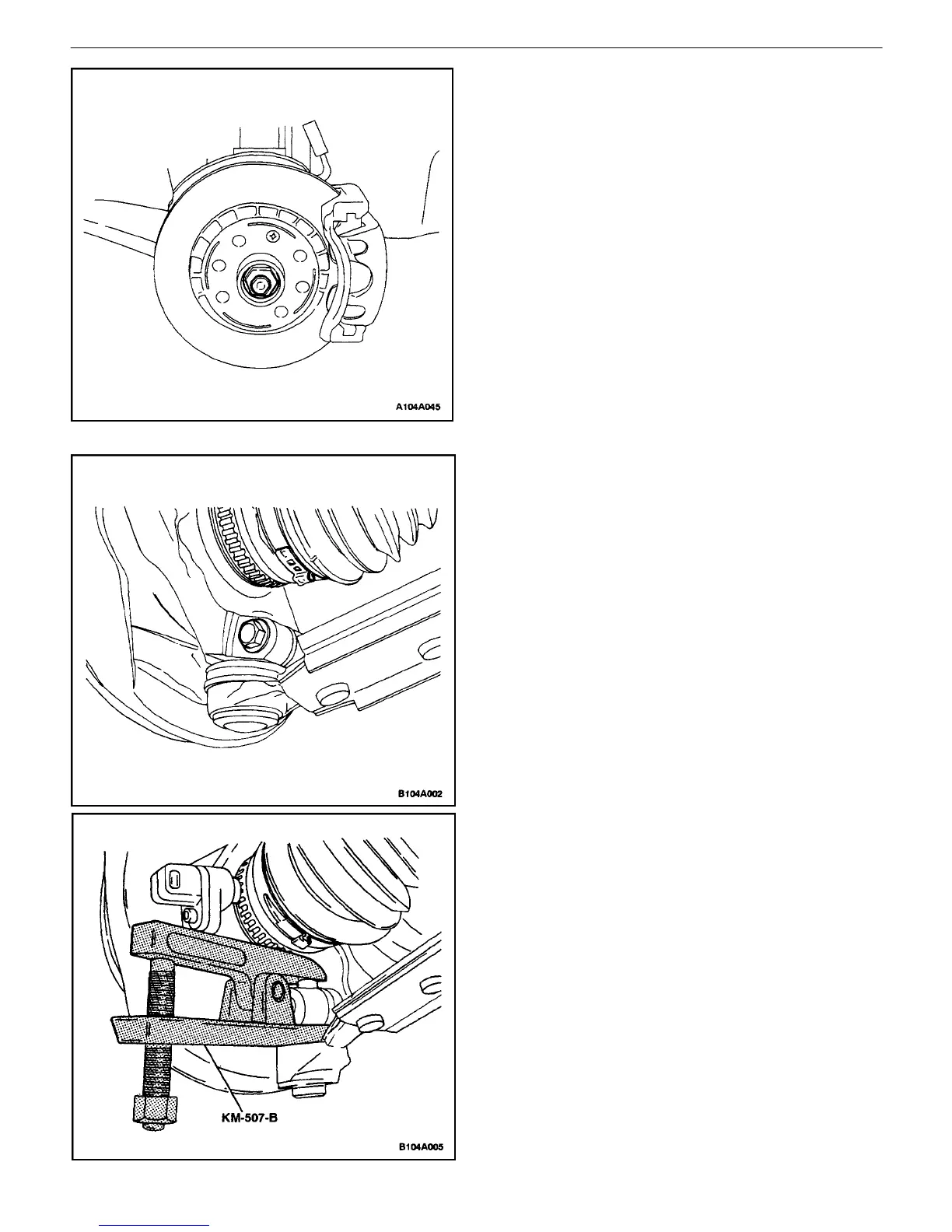

1. Raise and suitably support the vehicle.
2. Remove the wheels. Refer toSection 2E, Tires and
Wheels.
3. Remove the engine under covers. Refer toSection
9N, Frame and Underbody.
4. Remove the axle shaft caulking nut. Discard the
nut.
5. Remove the lower ball joint nut and bolt.
Notice : Use only the recommended tool for separating
the lower ball joint. Failure to use the recommended tool
may cause damage to the ball joint and the seal.
6. Separate the steering knuckle from the lower ball
joint using the ball joint separator KM–507–B.
