CLUTCH 5C0 – 7
DAEWOO V–121 BL4
MAINTENANCE AND REPAIR
ON–VEHICLE SERVICE
CLUTCH PEDAL

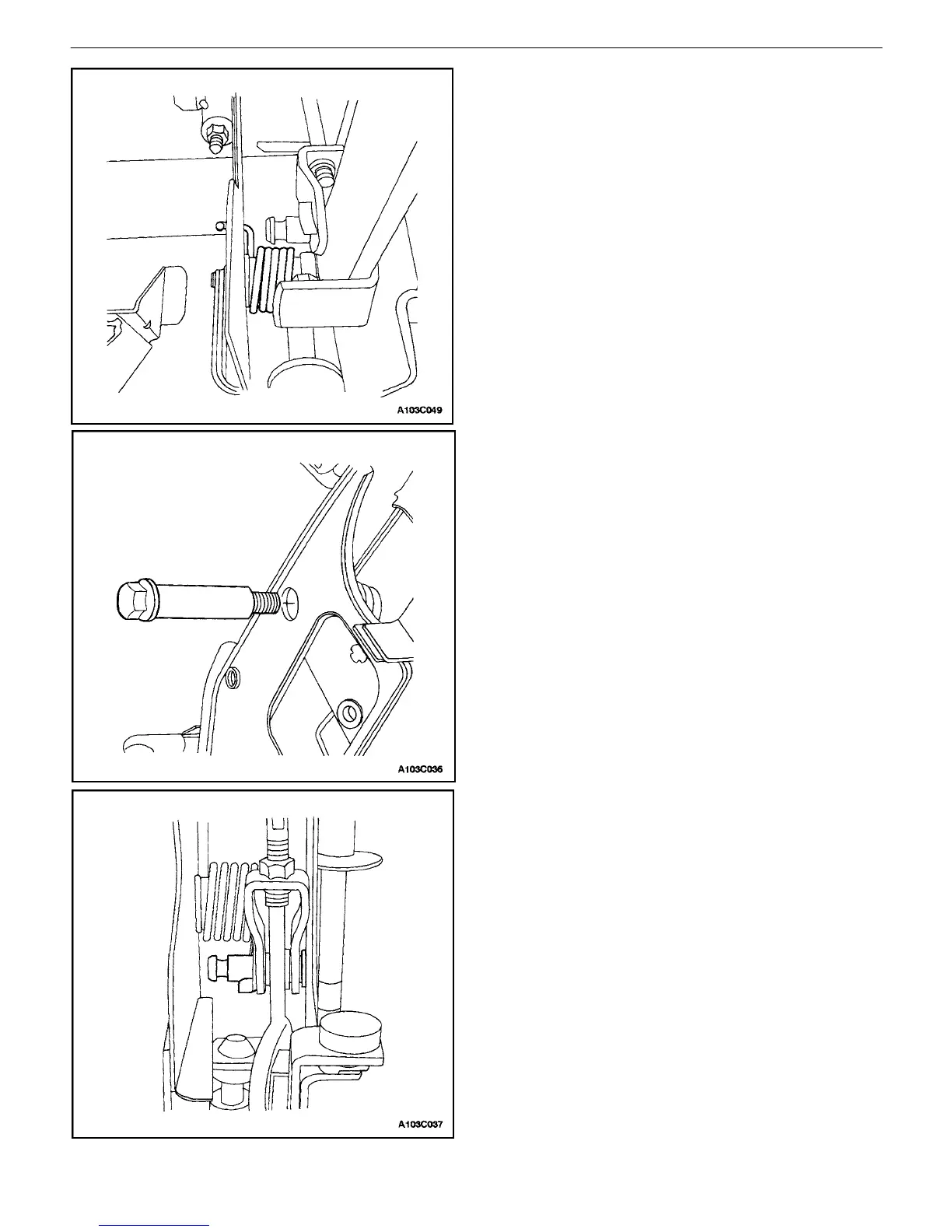

Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the return spring from the mount brace.
3. Remove the nut, the washer, and the pedal mount-
ing shaft.
4. Remove the locking washer and the piston rod bolt.
5. Remove the clutch pedal with the return spring from
the vehicle.
