1C – 14IDOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
CYLINDER HEAD AND GASKET
Tools Required
KM–470–B Angular Torque Gauge
J–28467–B Engine Assembly Lift Support
Removal Procedure

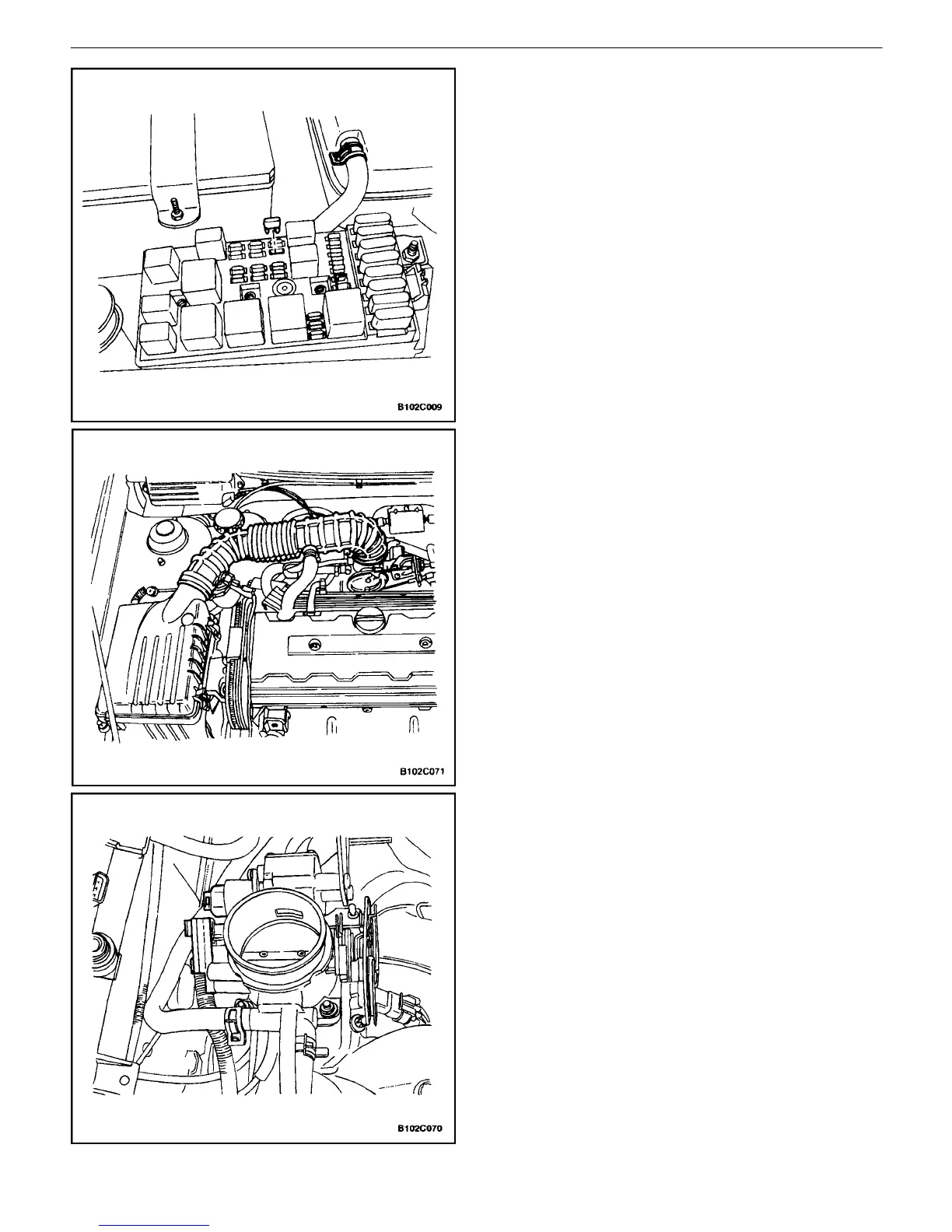

1. Remove the fuel pump fuse.
2. Start the engine. After it stalls, crank the engine for
10 seconds to rid the fuel system of fuel pressure.
3. Disconnect the negative battery cable.
4. Disconnect the powertrain control module
(PCM)/engine control module (ECM) ground termi-
nal.
5. Drain the engine coolant. Refer to Section 1D, En-
gine Cooling.
6. Disconnect the intake air temperature sensor con-
nector.
7. Disconnect the breather tube from the valve cover.
8. Disconnect the air intake tube from the throttle
body.
9. Disconnect the electronic ignition system (EI sys-
tem) ignition coil connector.
10. Disconnect the pre–converter oxygen sensor con-
nector.
11. Disconnect the idle air control valve connector.
12. Disconnect the throttle position sensor connector.
13. Disconnect the engine coolant temperature sensor
connector.
14. Disconnect the coolant temperature sensor connec-
tor.
15. Disconnect the camshaft position sensor.
