CRUISE CONRTOL SYSTEM 9U – 11
DAEWOO V–121 BL4
MAINTENANCE AND REPAIR
ON–VEHICLE SERVICE
CRUISE CONTROL ACTUATOR
Removal Procedure

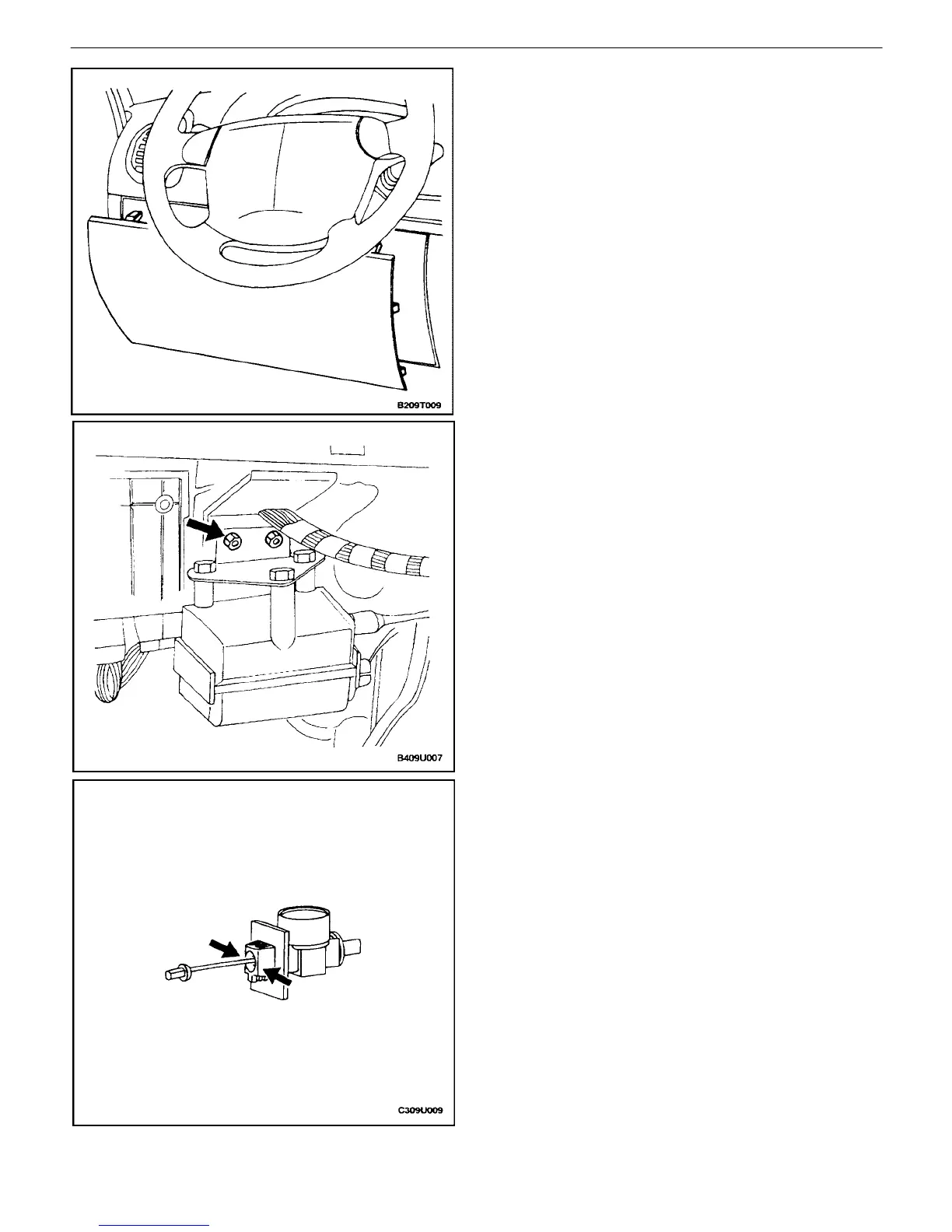

1. Carefully pull the knee bolster trim panel until it is
loose from its retaining clips.
2. Remove the knee bolster. Refer to Section 9G, In-
terior Trim.
3. Remove the actuator bracket with the actuator still
attached.
4. Press the tabs on the cable adjuster, and remove
the cable and the adjuster from the adjuster brack-
et.
