INSTRUMENT/DRIVER INFORMATION 9E – 29
DAEWOO V–121 BL4
INSTRUMENT CLUSTER

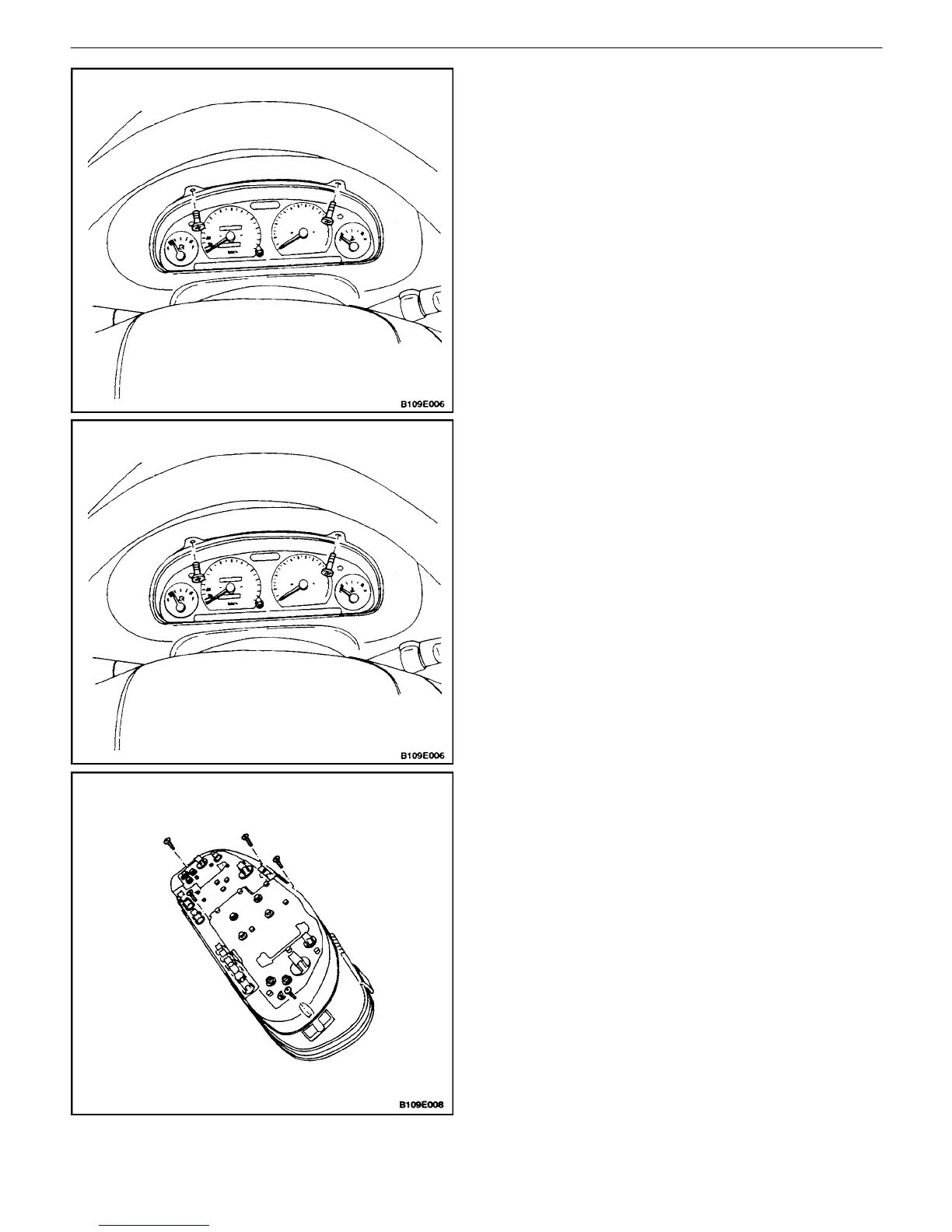

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the screws and the instrument cluster.
3. Disconnect the electrical connectors.
Installation Procedure
1. Connect the electrical connectors.
2. Install the instrument cluster with the screws.
Tighten
Tighten the instrument cluster screws to 4 NSm (35
lb–in).
3. Connect the negative battery cable.
SPEEDOMETER/ODOMETER/TRIP
ODOMETER
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to ”Instru-
ment Cluster” in this section.
3. Push the locking and remove the instrument cluster
lens.
