Daewoo NUBIRA - Clutch Master Cylinder Assembly Installation

CLUTCH 5C0 – 19
DAEWOO V–121 BL4

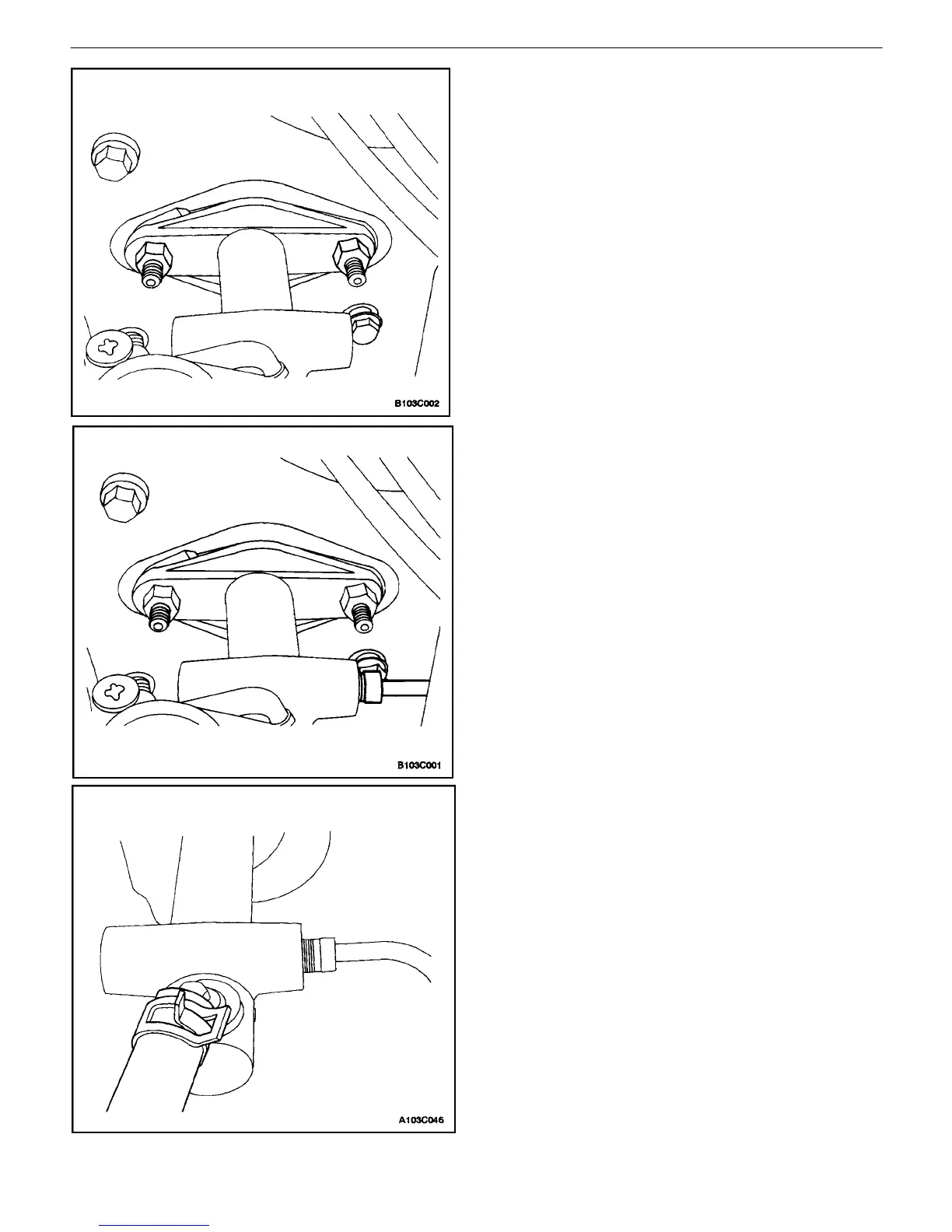

Installation Procedure
1. Install the master cylinder to the mounting bolts and
install the locknuts.
Tighten
Tighten the clutch master cylinder locknuts to 22 NSm
(18 lb–ft).
2. Connect the pipe to the master cylinder.
3. Connect the reservoir hose to themaster cylinder
and tighten the spring clamp.
