Daewoo NUBIRA - Fuel Filler Door Remote Cable and Handle Installation

BODY REAR END 9S – 17
DAEWOO V–121 BL4
4. Remove the front seat and the rear seats. Refer to
Section 9H, Seats.

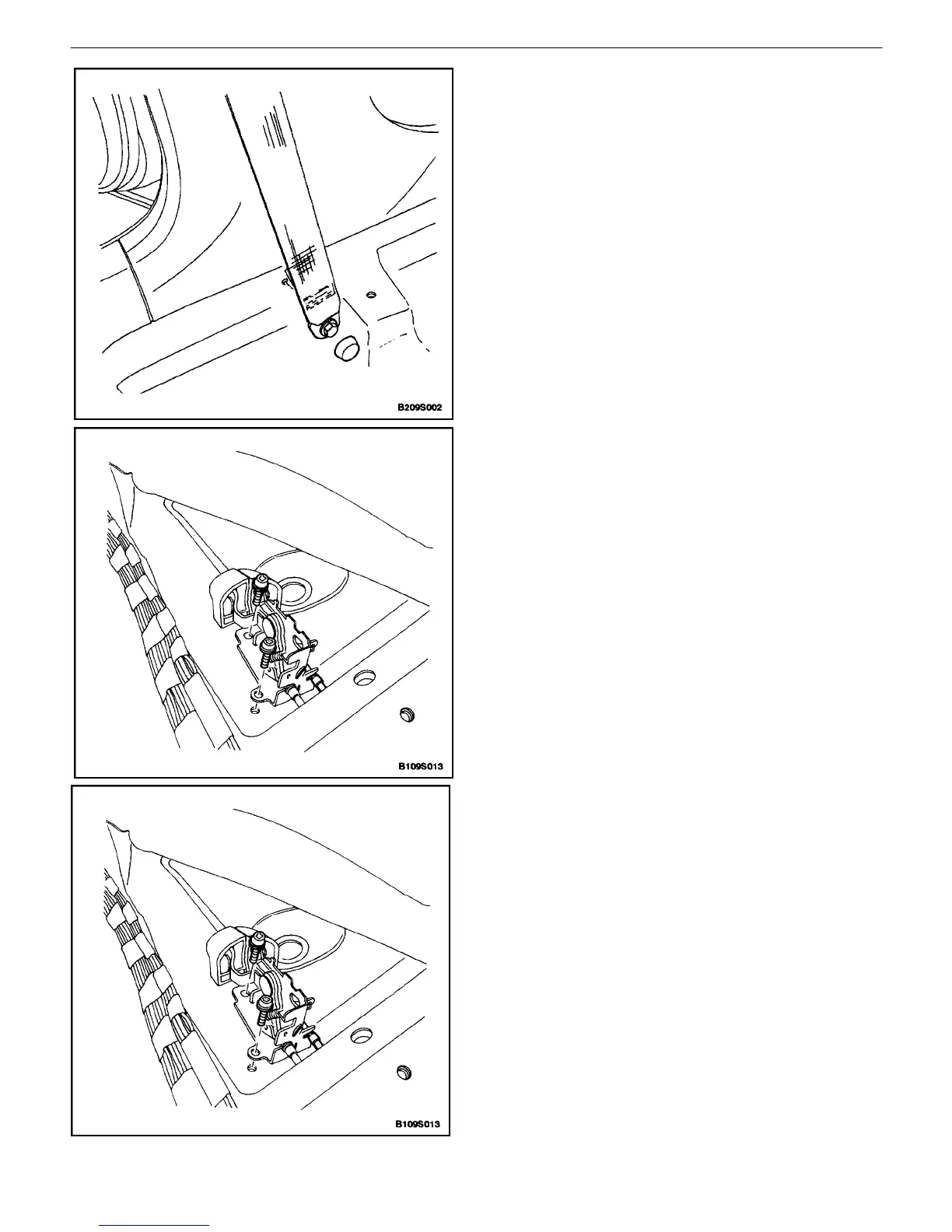

5. Remove the lower B–pillar seat belt bolt and the
anchor.
6. Remove the rear deck lid remote handle cover.
7. Reposition the floor carpet on the left side of the
vehicle.
8. Remove the screws and the fuel filler door remote
handle.
9. Disconnect the cable from the handle.
10. Remove the cable.
Installation Procedure
1. Feed the cable from the luggage compartment to
the passenger compartment.
2. Connect the cable to the handle.
3. Install the handle with the screws.
Tighten
Tighten the fuel filler door remote cable handle screws
to 8 NSm (71 lb–in).
