IMMOBILIZER ANTI–THEFT SYSTEM 9T – 9
DAEWOO V–121 BL4
Installation Procedure

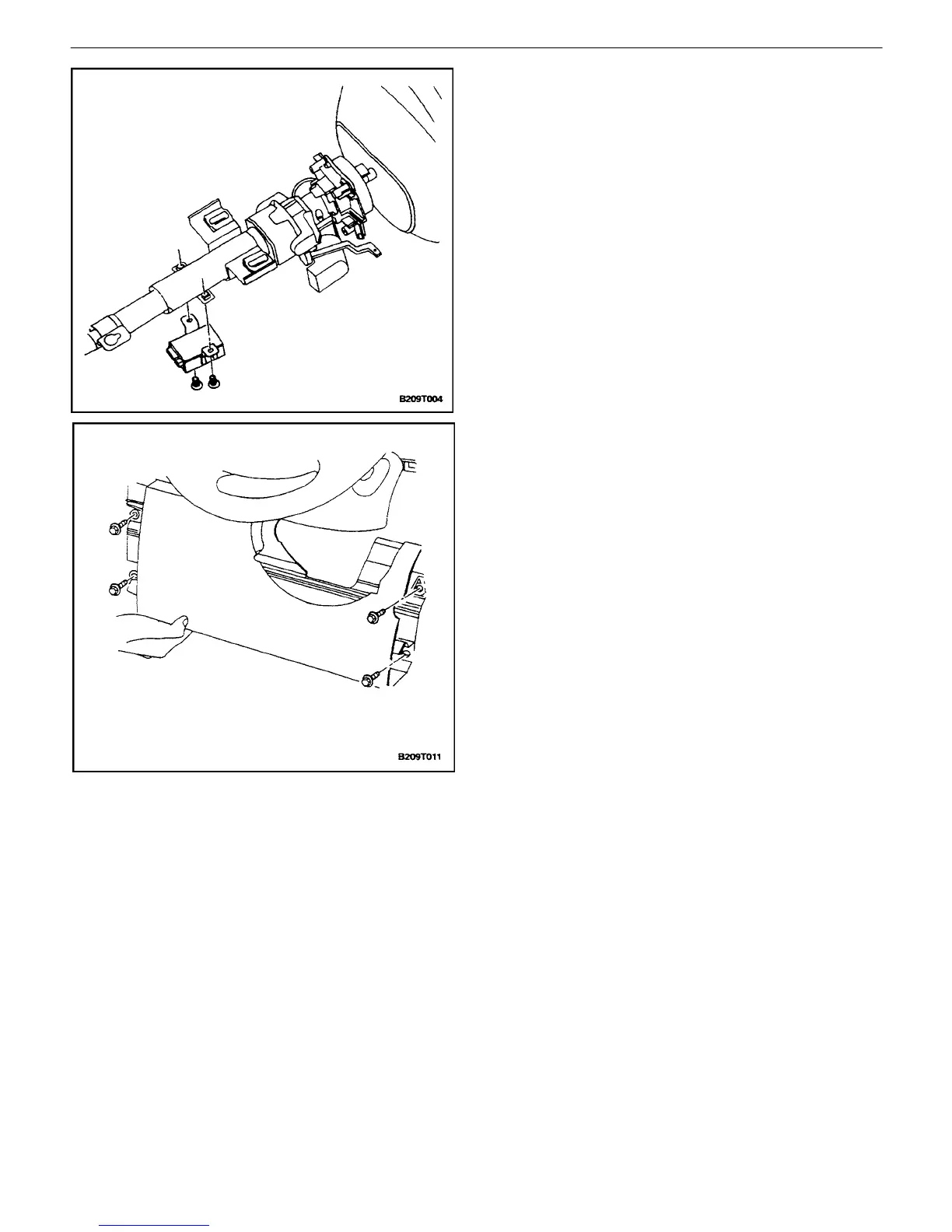

1. Connect the electrical connectors to the immobilizer
control unit.
2. Install the immobilizer control unit with the bolts.
Tighten
Tighten the immobilizer control unit mounting bolts to
4 NSm (35 lb–in).
3. Install the knee bolster with the bolts.
Tighten
Tighten the knee bolster mounting bolts to 22 NSm (16
lb–in).
4. Install the instrument panel side cover.
5. Install the knee bolster trim panel.
6. Connect the negative battery cable.
Important : After replacing the immobilizer, the keys must
be re–authorized using the key coding procedure. Refer
to”Key Coding Procedure” in this section. Also, the elec-
tronic control module (ECM) identification (ID) code must
be reset. Refer to”ID Code Reprogramming” in this sec-
tion.
