9Q – 6IROOF
DAEWOO V–121 BL4

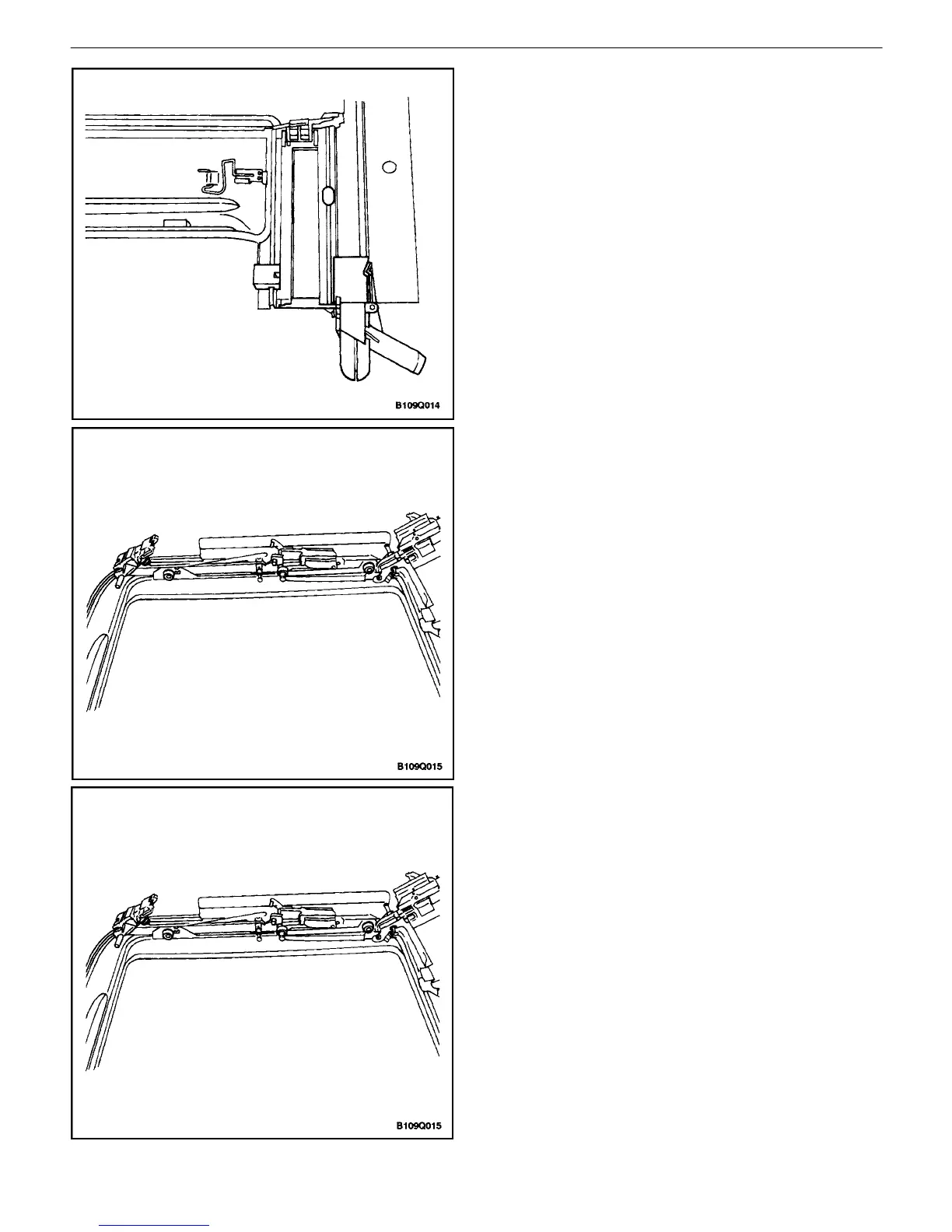

8. Remove the rubber end caps.
9. Remove the drain nozzles.
10. Remove the shade stops.
11. Remove the glass stops.
12. Remove the shade.
13. Remove the glass and the frame from the housing.
14. Remove the plastic trim.
15. Remove the screws and the glass from the frame.
Installation Procedure
Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.
1. Install the glass to the frame with the screws.
Tighten
Tighten the sunroof glass screws to 7 NSm (62 lb–in).
To Next Page
