9P – 16IDOORS
DAEWOO V–121 BL4
Installation Procedure

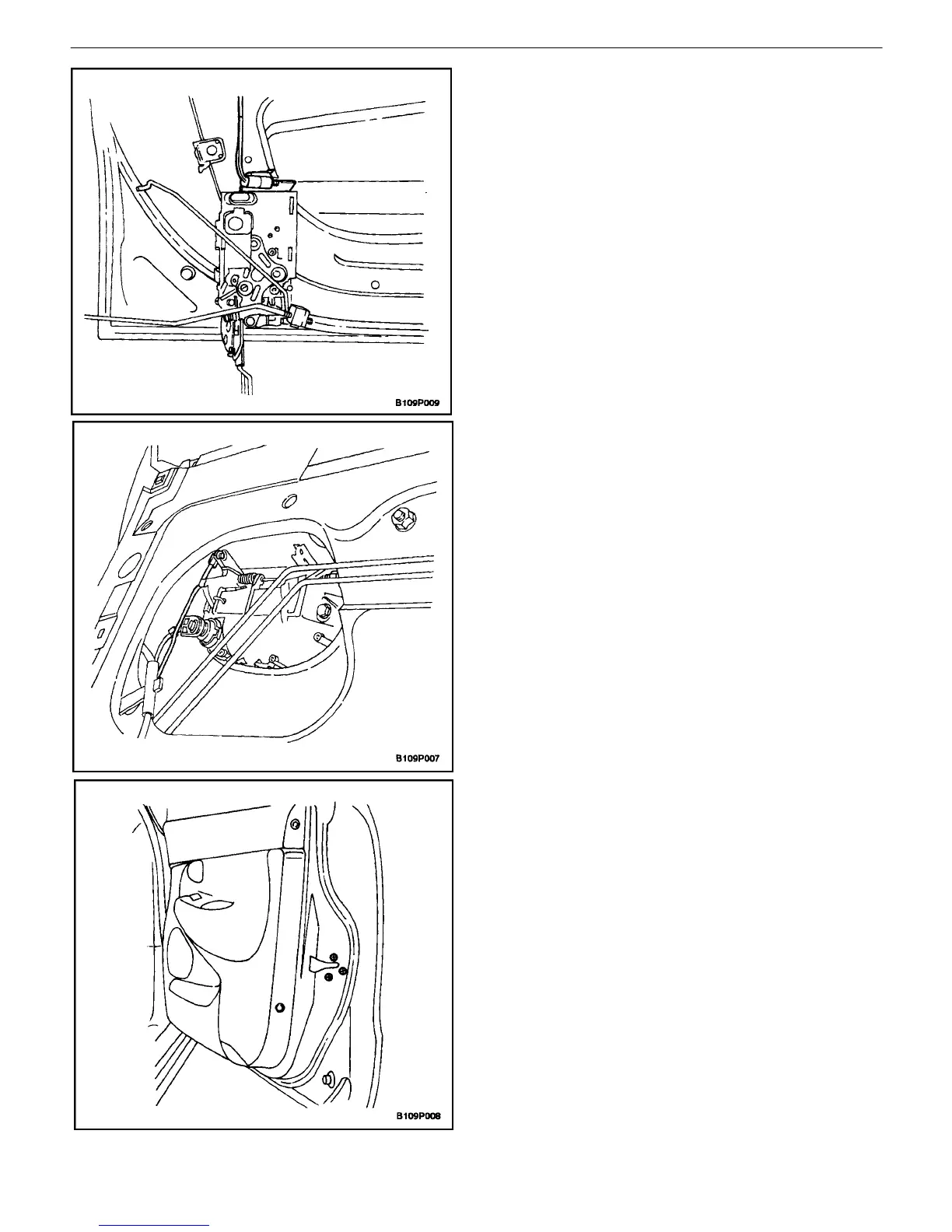

1. Connect the electrical connector.
2. Connect the inside door handle and the lock rods.
3. Connect the outside door handle and the lock rods.
Notice : It is important to use a flat–end rotary file in order
not to damage the tapped floating cage plate. The striker
screws and the tapped floating cage plate are important
attaching parts that could affect the performance of vital
components and systems.
4. Install the front door lock with the screws.
Tighten
Tighten the front door lock screws to 10 NSm (89 lbin).
5. Install the seal trim. Refer to”Door Seal Trim” in this
section.
6. Connect the negative battery cable.
To Next Page
