9F – 10IAUDIO SYSTEMS
DAEWOO V–121 BL4

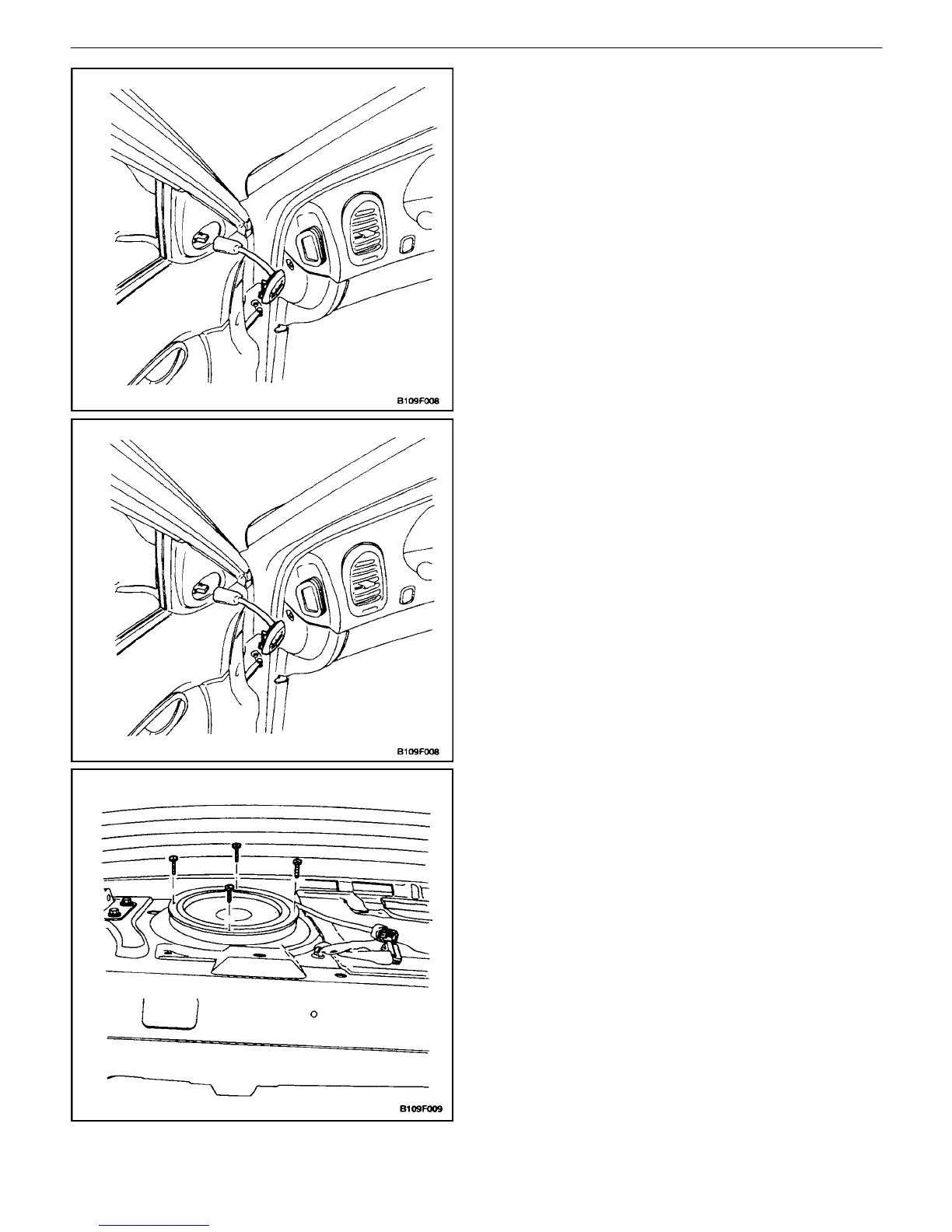

TWEETER SPEAKERS
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the tweeter speaker by prying the tweeter
speaker off of the front door eschutcheon.
3. Disconnect the electrical connector.
Installation Procedure
1. Connect the electrical connector.
2. Install the tweeter speaker by snapping the tweeter
speaker onto the front door eschutcheon.
3. Connect the negative battery cable.
REAR SPEAKERS (NOTCHBACK)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the rear seat cushion and the rear seat-
back. Refer to Section 9H, Seats.
3. Remove the right side C–pillar trim panel and the
deck lid sill plate trim cover. Refer to section 9G,
Interior Trim.
4. Disconnect the electrical connector.
5. Remove the screws and the rear speakers.
