Daewoo NUBIRA - Rear Bumper Fascia Installation

BUMPERS AND FASCIAS 9O – 9
DAEWOO V–121 BL4

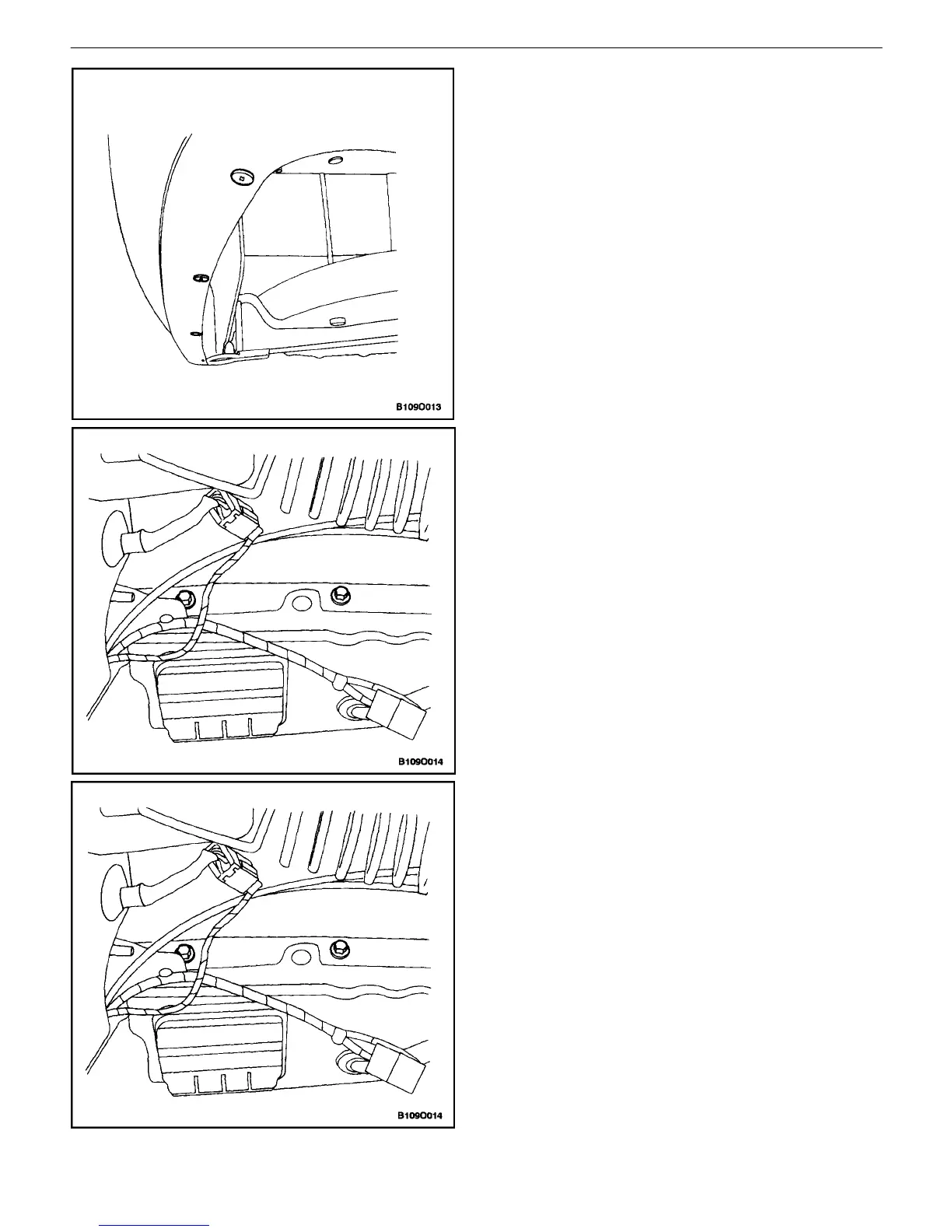

6. Remove the lower fascia screws.
7. Remove the luggage compartment rear quarter trim
panel.
8. Remove the fascia bolts in the luggage compart-
ment.
9. Remove the fascia.
Installation Procedure
1. Install the fascia.
Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.
2. Install the luggage compartment fascia bolts.
Tighten
Tighten the luggage compartment fascia bolts to 8
NSm (71 lb–in).
