9O – 10IBUMPERS AND FASCIAS
DAEWOO V–121 BL4

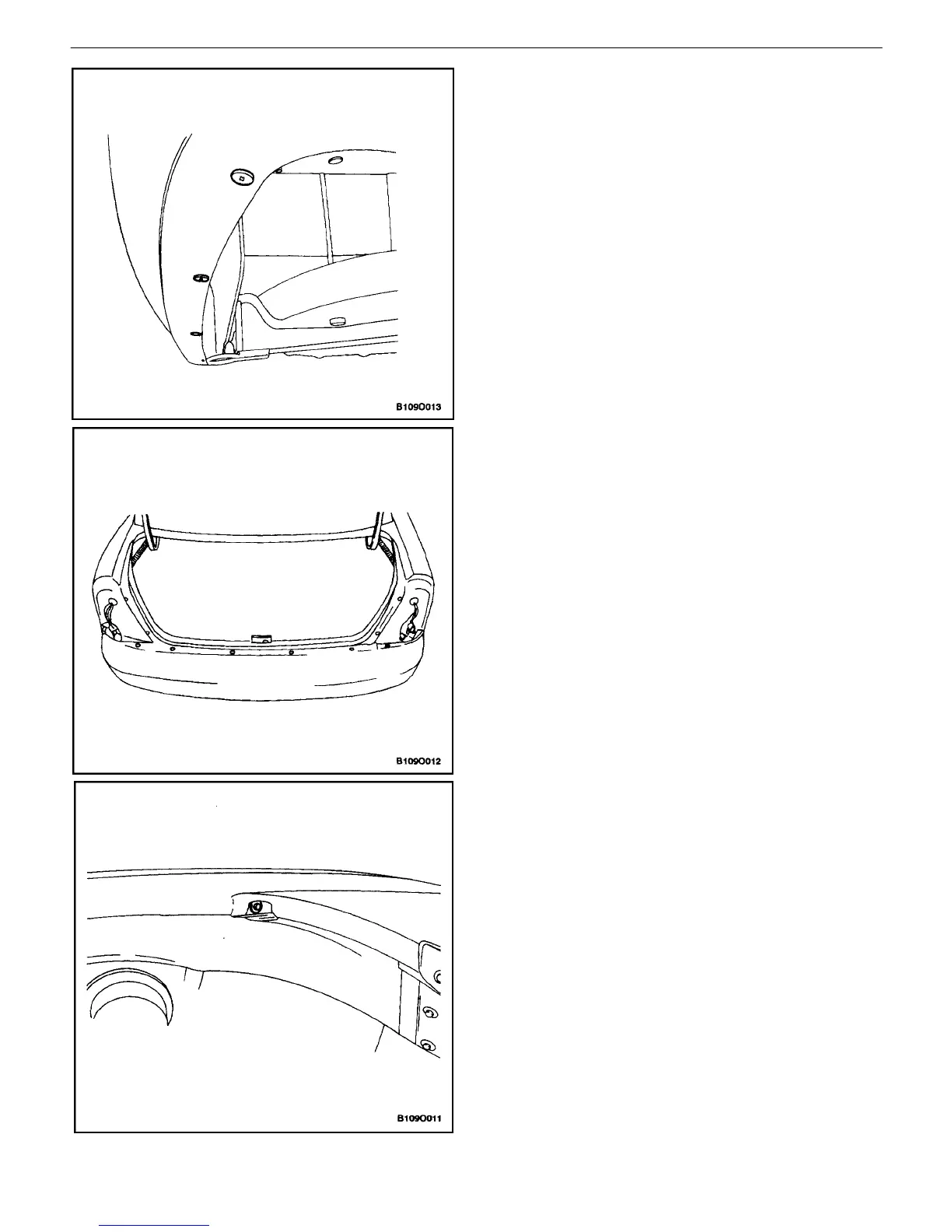

3. Install the luggage compartment rear quarter trim
panel.
4. Install the lower fascia screws.
5. Install the upper fascia screws.
6. Install the taillamps. Refer to Section 9B, Lighting
Systems.
7. Install the rear wheel well fascia bolts.
Tighten
Tighten the rear wheel well fascia bolts to 1.5 NSm (13
lb–in).
To Next Page
