DOORS 9P
–
27
DAEWOO V
–
121 BL4

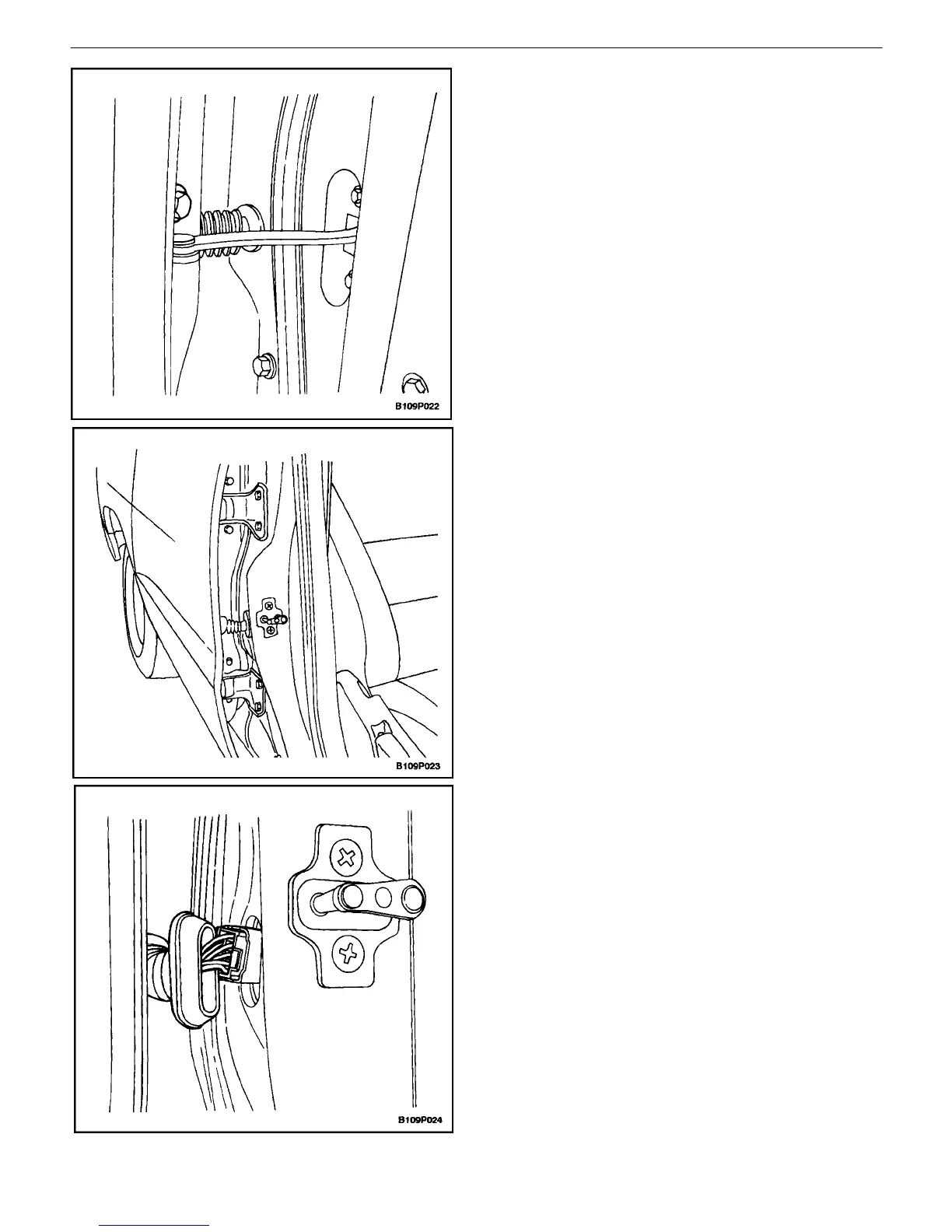

REAR DOOR ASSEMBL
Y
Removal Procedure
1.
Disconnect the negative battery cable.
2.
Remove the bolt and the door hold open link from
the body
.
3.
With the aid of another technician, remove the door
hinge bolts and the rear door
.
4.
Disconnect the body
–
to
–
door rubber grommet and
the electrical connector
.
