ROOF 9Q – 15
DAEWOO V–121 BL4
Installation Procedure
1. Connect the electrical connector.
Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

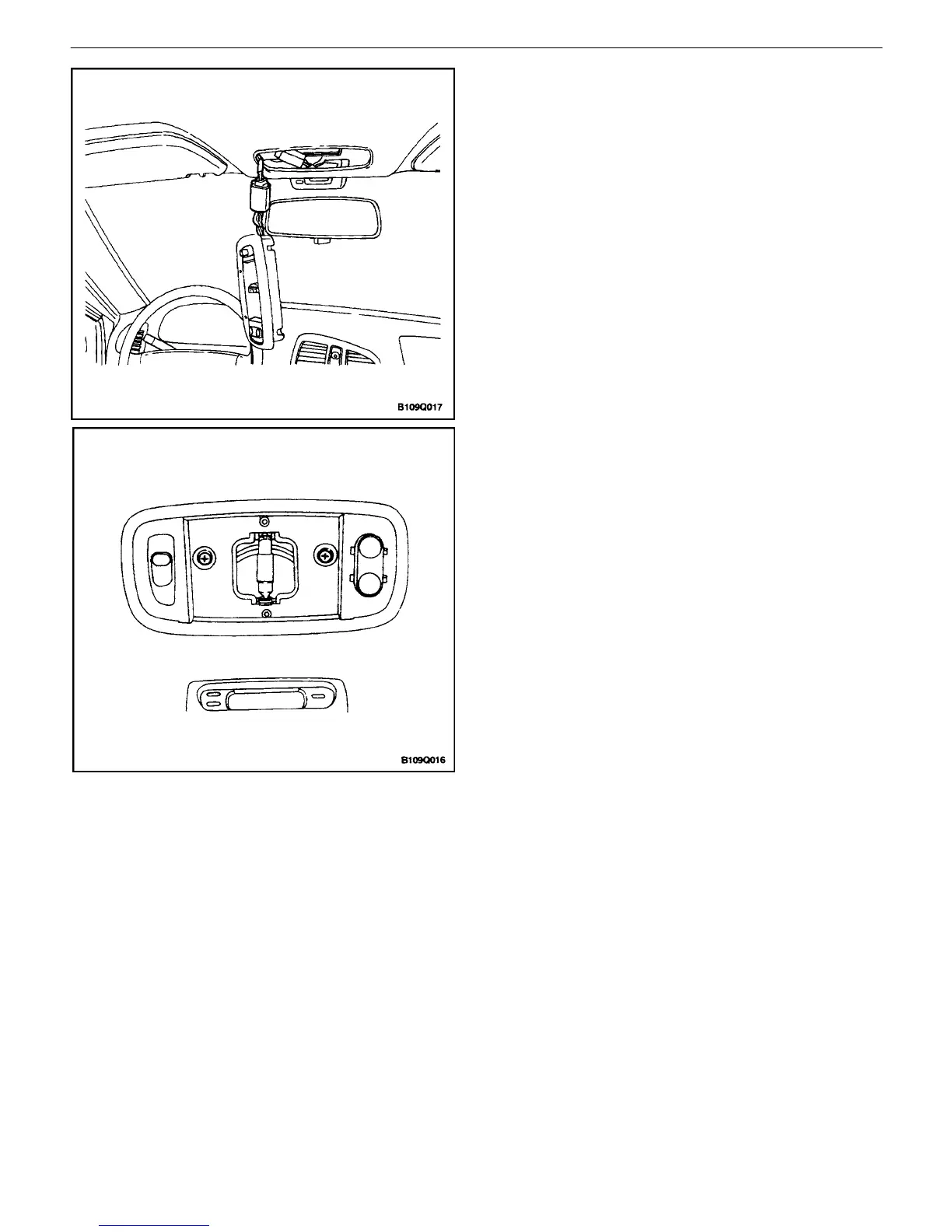

2. Install the lamp/power sunroof control switch with
the screws.
Tighten
Tighten the lamp/power sunroof control switch
screws to 4 NSm (35 lb–in).
3. Install the lamp lens.
4. Connect the negative battery cable.
To Next Page
