4G – 8IPARKING BRAKE
DAEWOO V–121 BL4
Installation Procedure

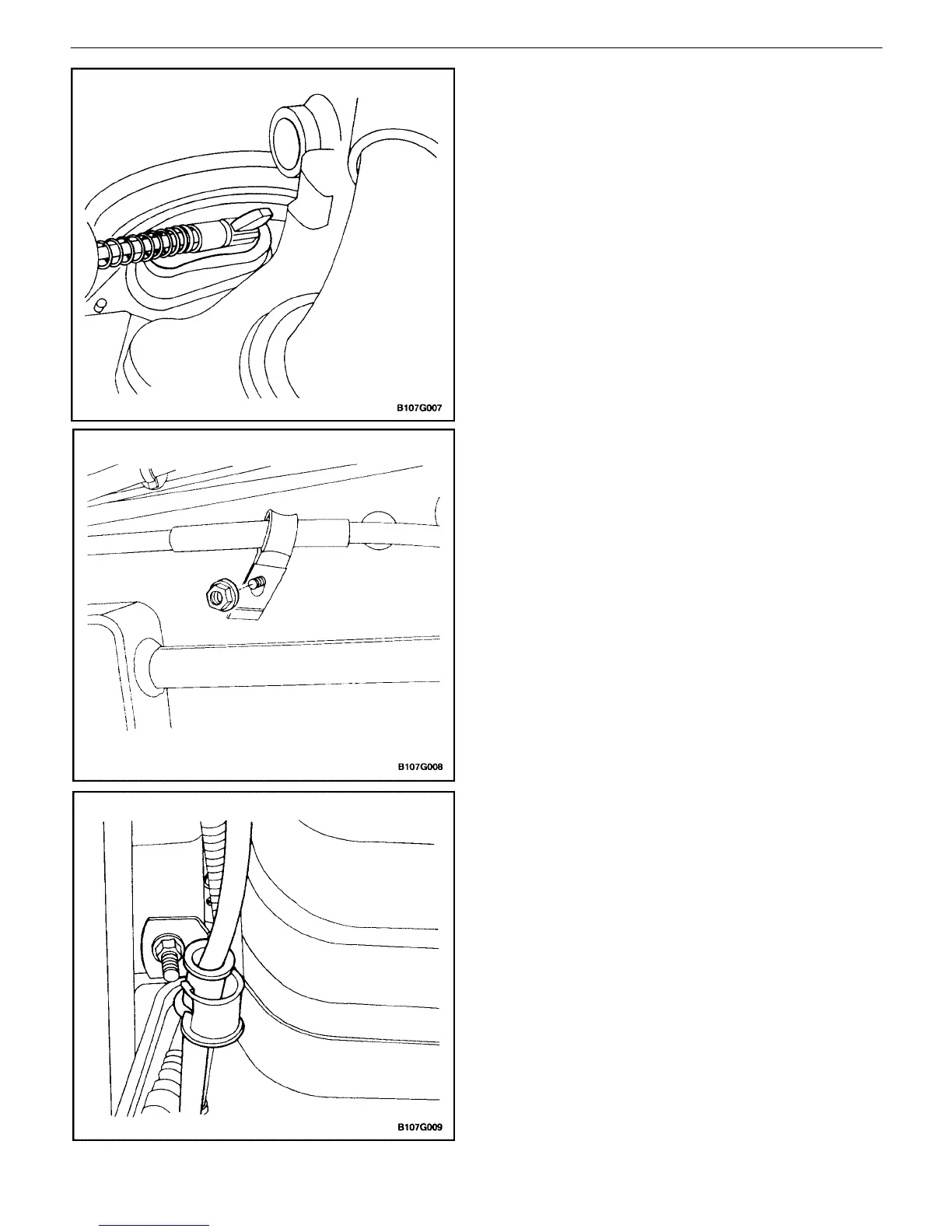

1. Route the cable to the hole on the steering knuckle
assembly.
2. Fasten the parking brake cable to the lever at the
rear of the disc brake backing plate.
3. Install the clip that secures the parking brake cable
to the routing hole on the steering knuckle assem-
bly.
4. Install the nut securing the parking brake cable to a
bracket on both the driver and passenger sides of
the vehicle.
Tighten
Tighten the parking brake cable–to–underbody side
bracket nuts to 12 NSm (106 lb–in).
5. Install the parking brake cable (passenger’s side) to
the clip near the fuel tank strap.
6. Route the parking brake cable through the loop of a
welded underbody bracket and under the fuel tank
retaining strap (driver’s side).
Tighten
Tighten the fuel tank retaining strap nut to 12.5 NSm
(111 lb–in).
