WIPERS/WASHER SYSTEMS 9D – 19
DAEWOO V–121 BL4
3. Remove the front left wheel. Refer to Section 2E,
Tires and Wheels.

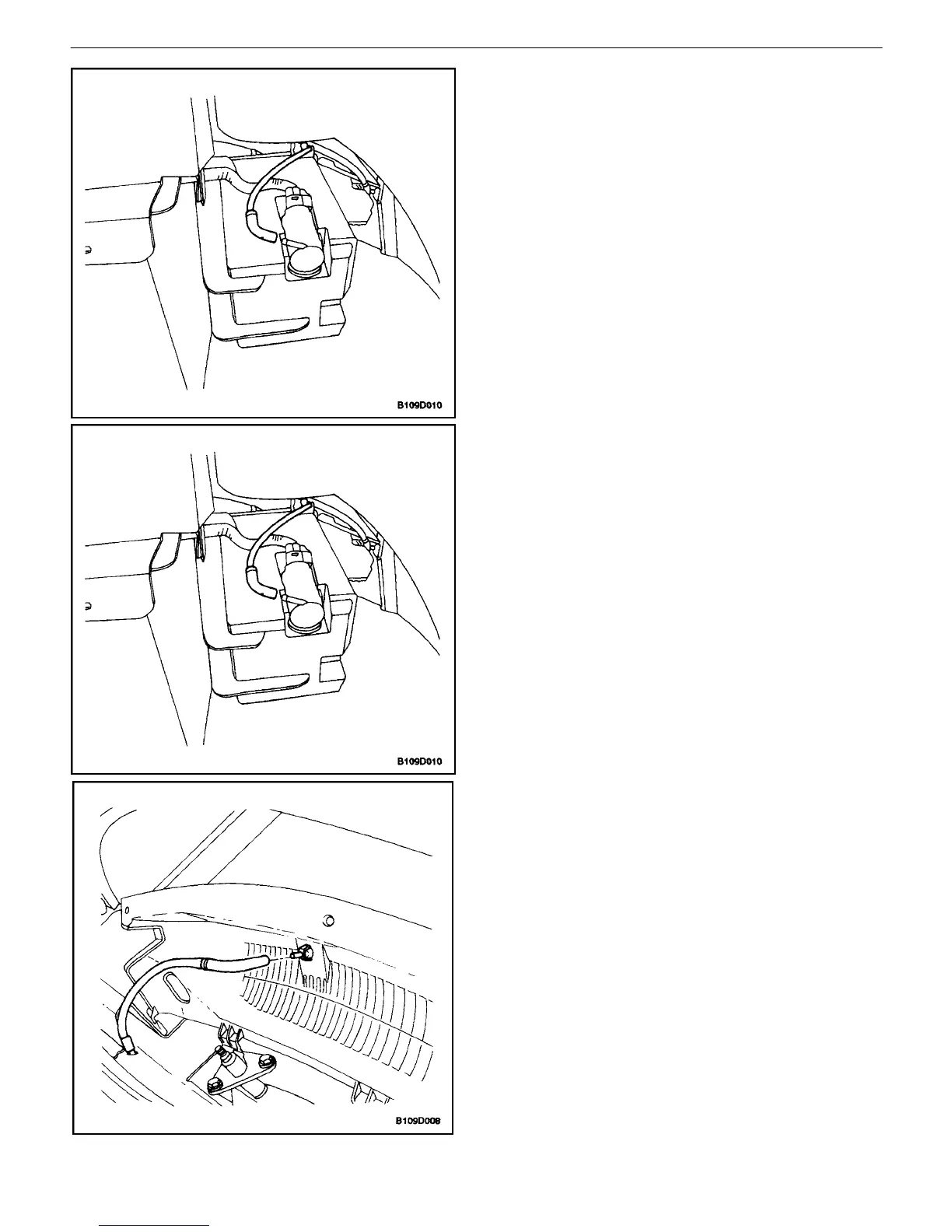

4. Remove the bolts and the screws and the front
wheel well splash shield.
5. Disconnect the washer hose from the washer reser-
voir.
6. Remove the washer hose.
Installation Procedure
1. Install the washer hose.
2. Connect the washer hose to the washer pump.
Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.
3. Install the front wheel well splash shield with the
bolts and the screws.
Tighten
Tighten the front wheel well splash shield bolts to 1.5
NSm (13 lb–in).
4. Remove the front left wheel. Refer to Section 2E,
Tires and Wheels.
5. Connect the windshield washer hose to the washer
nozzles.
6. Install the cowl vent grille. Refer to Section 9R,
Body Front End.
