MASTER CYLINDER 4B 3
DAEWOO V121 BL4
MAINTENANCE AND REPAIR
ONVEHICLE SERVICE

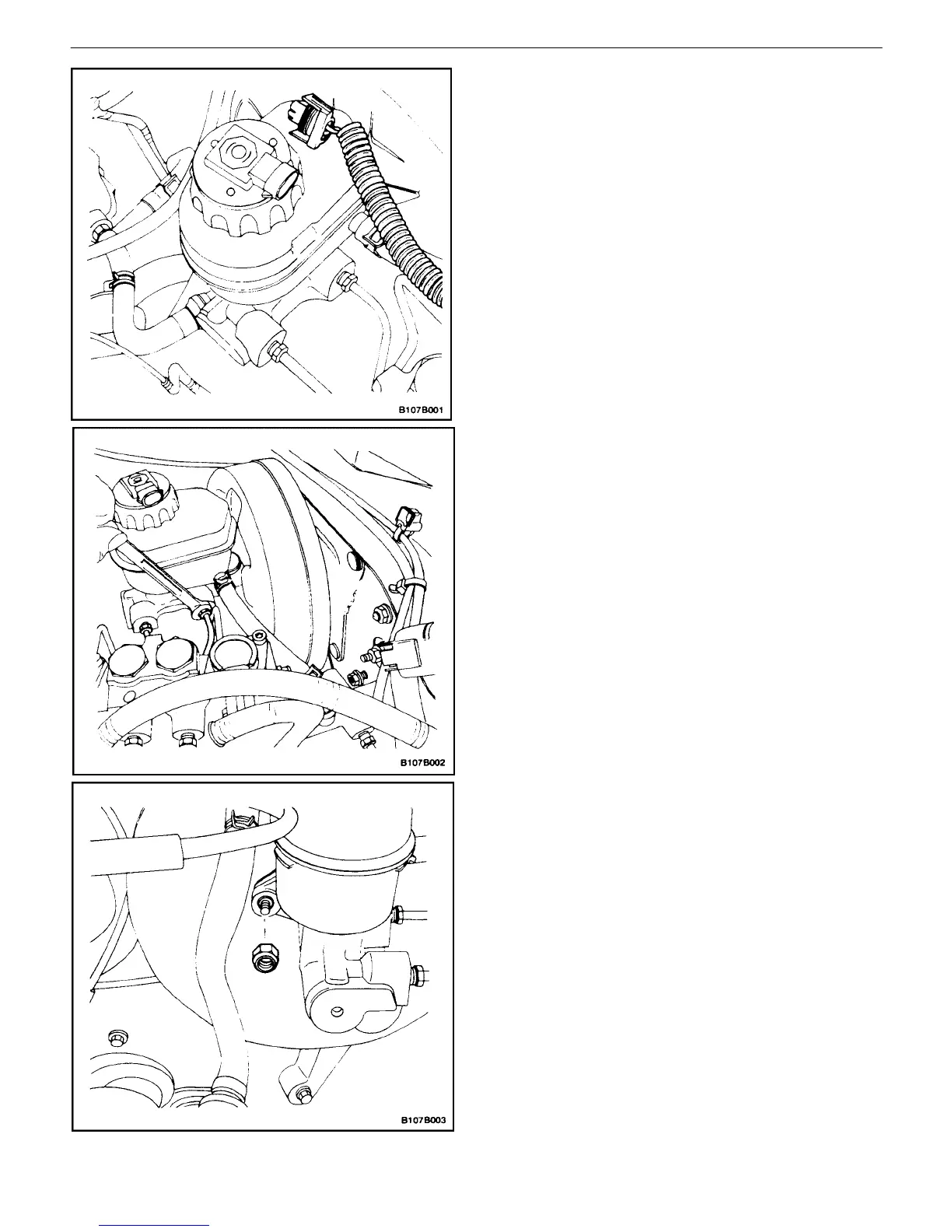

MASTER CYLINDER ASSEMBLY
Removal Procedure
1. Disconnect the electrical connector from the reser-
voir cap.
2. For vehicles with the ABS braking system, discon-
nect the brake lines from the master cylinder body.
3. For vehicles with the nonABS braking system, dis-
connect the brake lines from the proportioning
valves.
4. For vehicles with the manual transaxle, disconnect
the clip to the clutch hose connection to the master
cylinder and move the clip out of the way.
5. Remove the clutch hose from the master cylinder if
equipped.
6. Plug the opening to the brake lines to prevent fluid
loss and contamination.
7. Remove the attaching nuts from the power booster.
8. Remove the master cylinder assembly.
9. Drain the brake fluid.
