9E – 32IINSTRUMENT/DRIVER INFORMATION
DAEWOO V–121 BL4

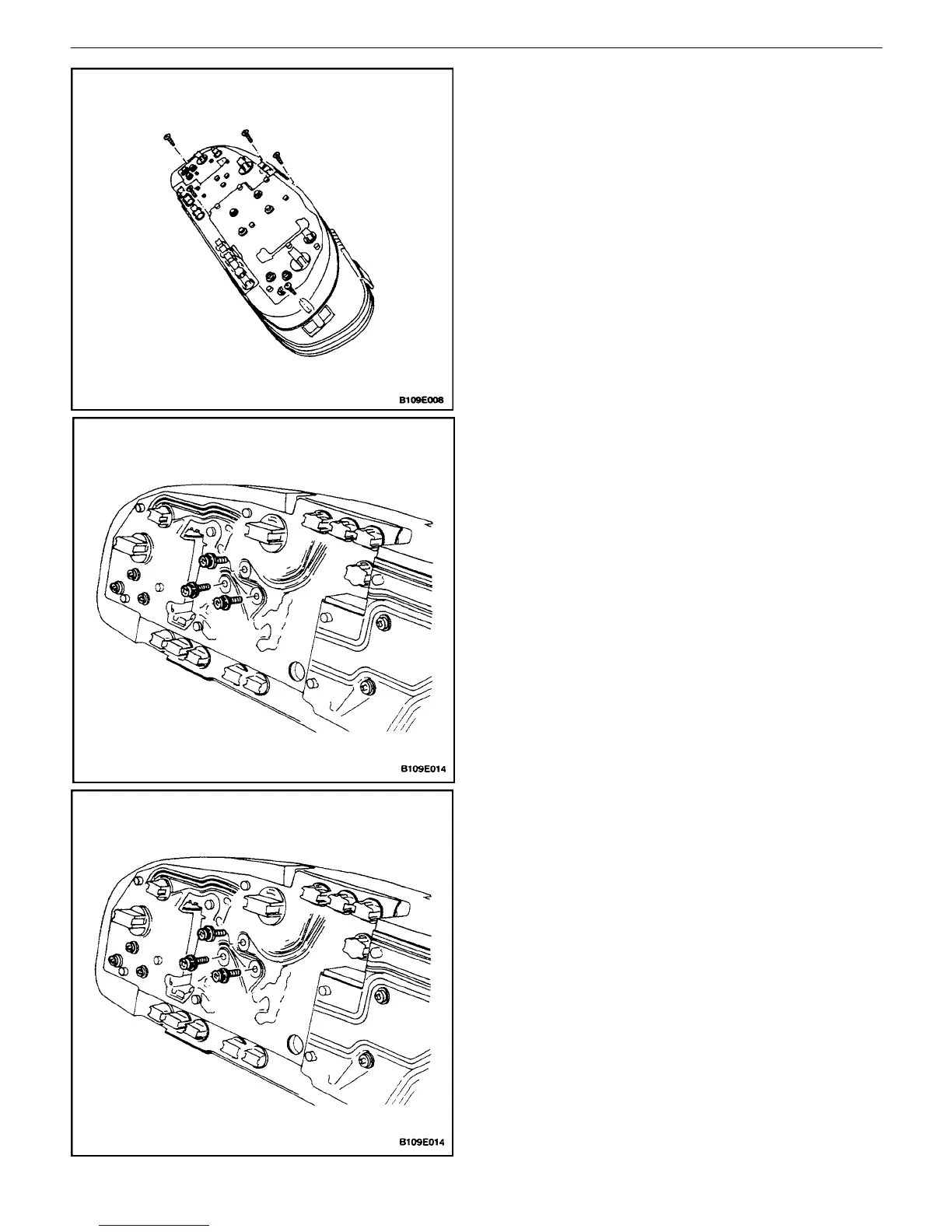

TACHOMETER
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to ”Instru-
ment Cluster” in this section
3. Remove the screws and the instrument cluster
lens.
4. Remove the screws and the tachometer from the
instrument cluster.
Installation Procedure
1. Install the tachometer to the instrument cluster with
the screws.
Tighten
Tighten the tachometer screws to 2.5 NSm (22 lb–in).
