AUTOMATIC TRANSAXLE DRIVE AXLE 3A – 7
DAEWOO V–121 BL4

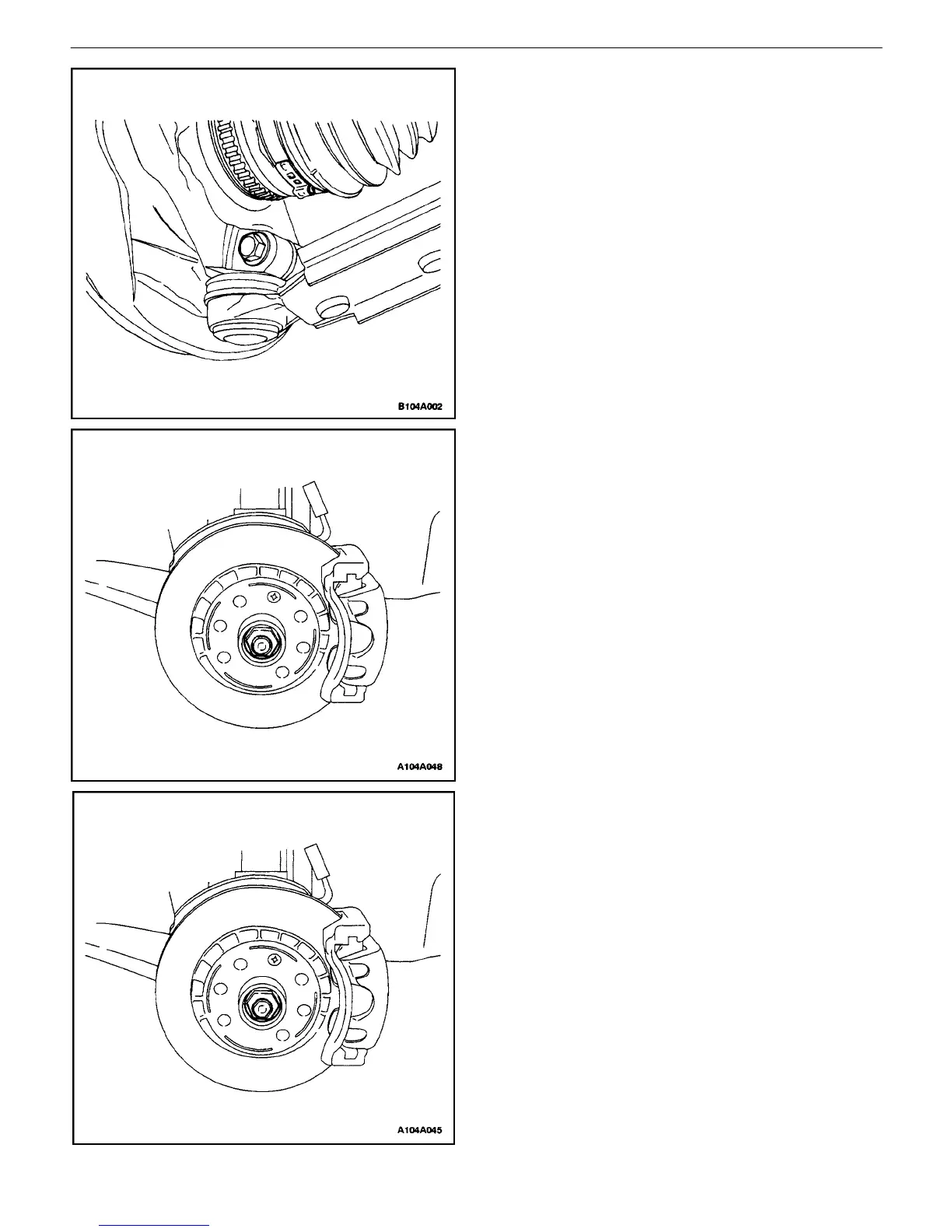

6. Install the lower ball joint bolt and nut.
Tighten
Tighten the lower ball joint bolt and nut to 60 N·m (44
lb–ft).
7. Loosely install a new axle shaft caulking nut. Al-
ways use a new nut.
8. Install the wheels. Loosely install the bolts. Refer
toSection 2E, Tires and Wheels.
9. Lower the vehicle to the floor.
Tighten
Tighten the wheel bolts to 90 N·m (66 lb–ft).
10. Tighten the axle shaft caulking nut to 180 N·m (134
lb–ft). Loosen the nut and re–tighten the nut to 50
N·m (37 lb–ft). Then tighten the nut further by 60
degrees.
11. Peen the caulking nut with a punch and a hammer
until the nut is locked into place on the axle shaft
hub.
12. Install the engine under covers. Refer toSection 9N,
Frame and Underbody.
13. Refill the transaxle fluid to the proper level. Refer
toSection 5A, 4T40E Automatic Transaxle.
