1C – 26IDOHC ENGINE MECHANICAL
DAEWOO V–121 BL4
9. Measure the intake camshaft end play and the ex-
haust camshaft end play. Refer to ”Engine Specifi-
cations” in this section.

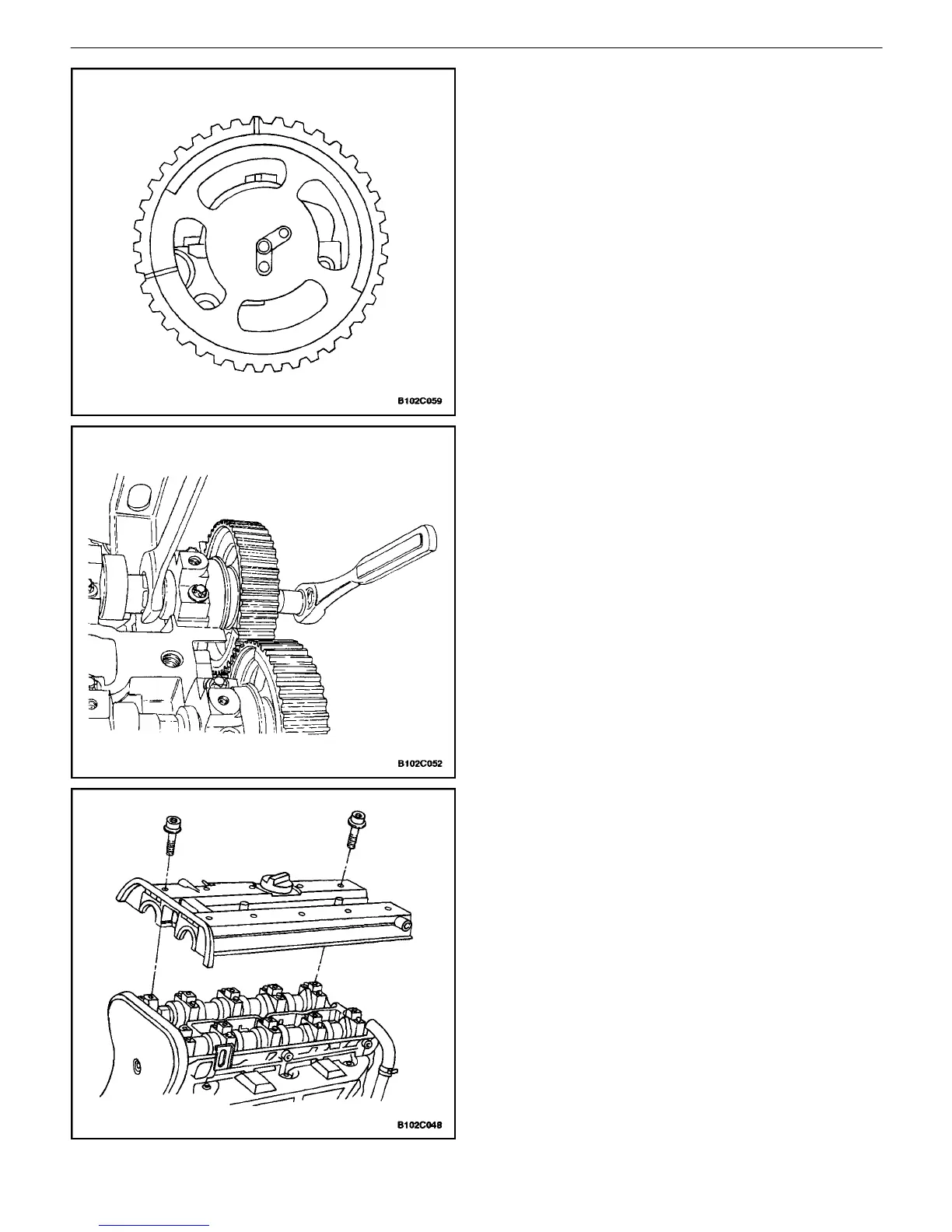

10. Install the intake camshaft gear.
11. While holding the intake camshaft firmly in place,
install the intake camshaft gear bolt.
Tighten
Tighten the intake camshaft gear bolt to 50 NSm (37
lb–ft). Using the angular torque gauge KM–470–B,
tighten the bolt another 60 degrees plus 15 degrees.
12. Install the exhaust camshaft gear.
13. While holding the exhaust camshaft firmly in place,
install the exhaust camshaft gear bolt.
Tighten
Tighten the exhaust camshaft gear bolt to 50 NSm (37
lb–ft). Using the angular torque gauge KM–470–B,
tighten the bolt another 60 degrees plus 15 degrees.
14. Install the valve cover and the valve cover gasket.
15. Install the valve cover washers.
16. Install the valve cover bolts.
Tighten
Tighten the valve cover bolts to 8 NSm (71 lb–in).
17. Connect the camshaft position sensor.
