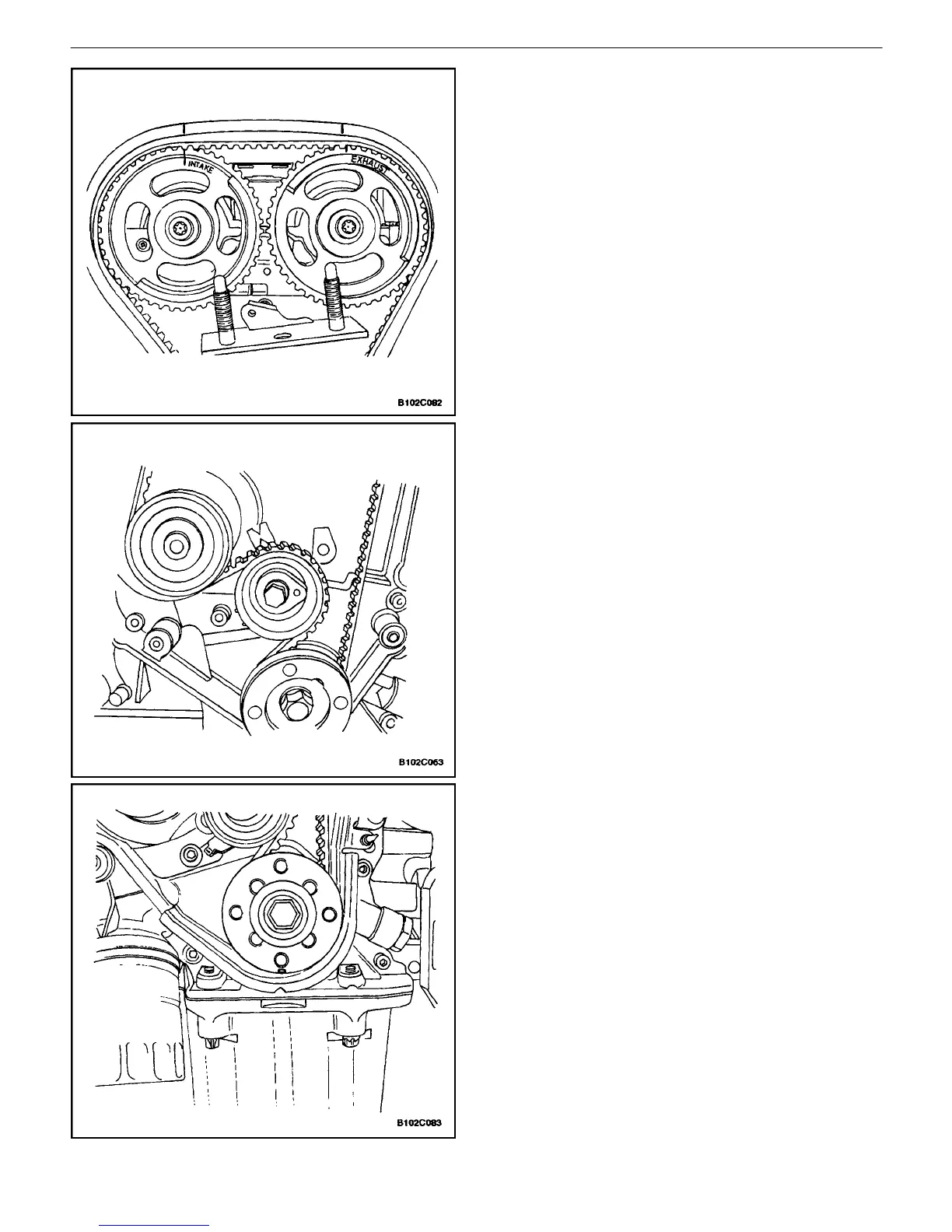

17. Align the camshaft gear timing marks. Use the ex-
haust gear mark for the exhaust gear and the in-
take gear mark for the intake gear, since the gears
are interchangeable
18. Loosen the automatic tensioner bolt. To relieve the
belt tension, turn the hex–key tab counterclockwise.
19. Rotate the automatic tensioner hex–key tab clock-
wise until the adjust arm pointer of the timing belt
automatic tensioner is aligned with the notch in the
timing belt automatic tensioner bracket.
20. Tighten the automatic tensioner bolt.
21. Rotate the crankshaft two full turns clockwise using
the crankshaft gear bolt.
22. Check the automatic tensioner pointer.
