1C – 80IDOHC ENGINE MECHANICAL
DAEWOO V–121 BL4

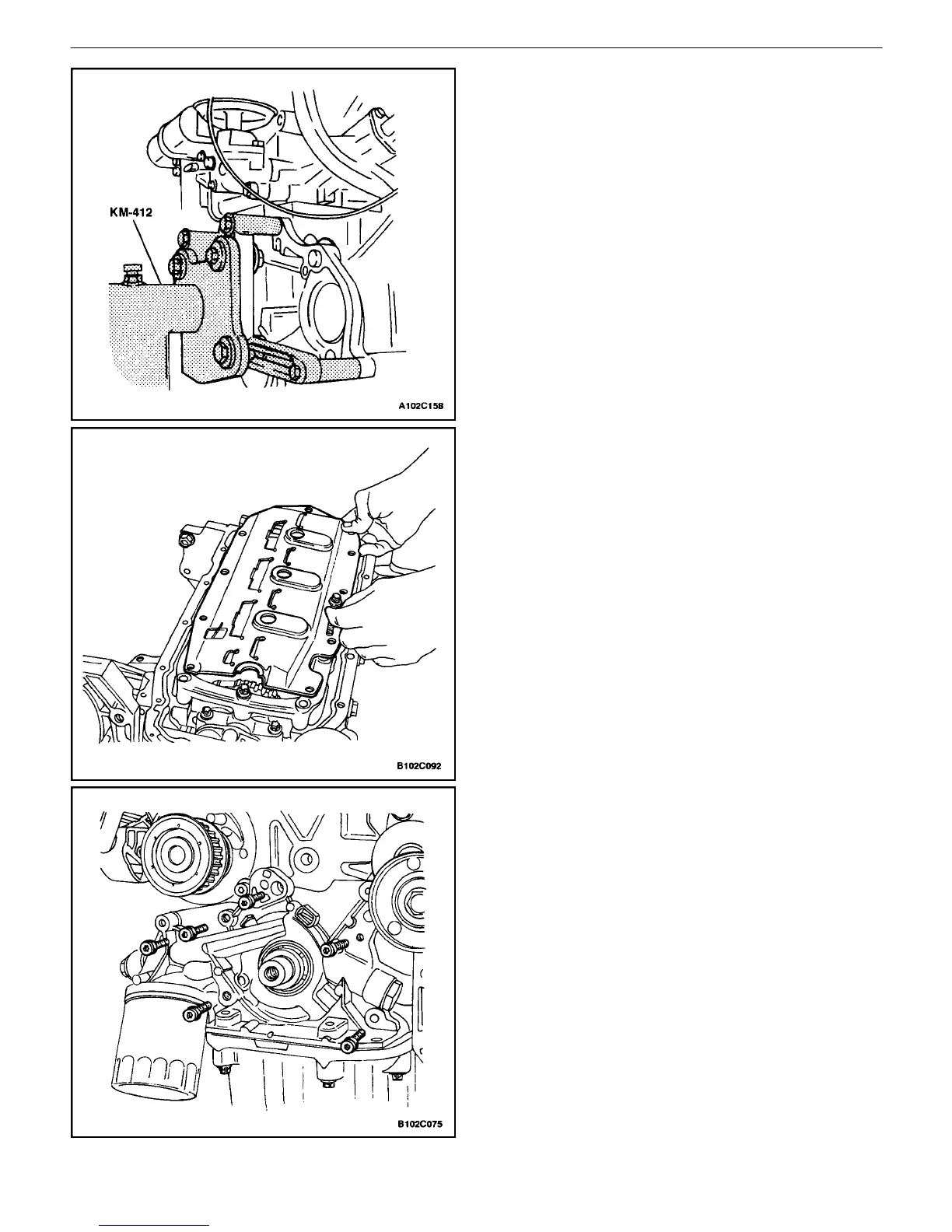

30. Rotate the engine on the engine overhaul stand
KM–412.
31. Remove the oil pan retaining bolts.
32. Remove the oil pan.
33. Remove the oil pump/pickup tube bolts.
34. Remove the oil pump/pickup tube.
35. Remove the lower block support bracket/splash
shield bolts.
36. Remove the splash shield.
37. Remove the lower block support bracket bolts.
38. Remove the lower block support bracket.
39. Remove the oil pump retaining bolts.
40. Remove the oil pump.
