2U device has two HDD brackets. For the way to remove the brackets, see Figure 3-20 .

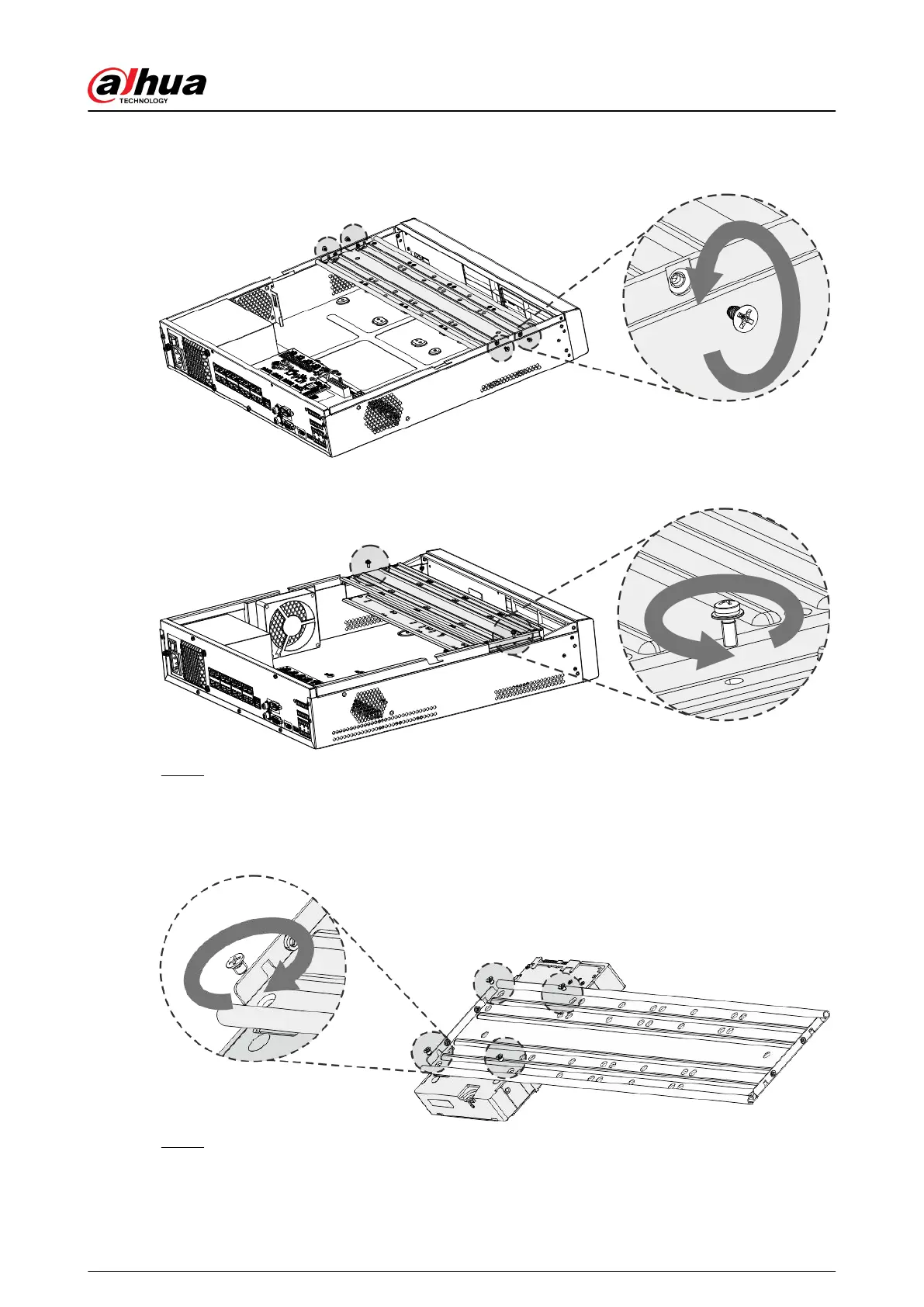

Figure 3-19 Remove screws (1.5U)
Figure 3-20 Remove screws (2U)
Step 4 Match the four screw holes on the HDD with the four holes on the bracket and then
fasten the screws.
The HDD is xed to the bracket.
Figure 3-21 Fasten screws
Step 5 see Step 4 to install other HDDs.
