V0913, 8.10
8.4. Manual movement of the axes
8.4.1. Movement procedure
To move an axis to a specific position manually, the hand wheel on the front panel of the

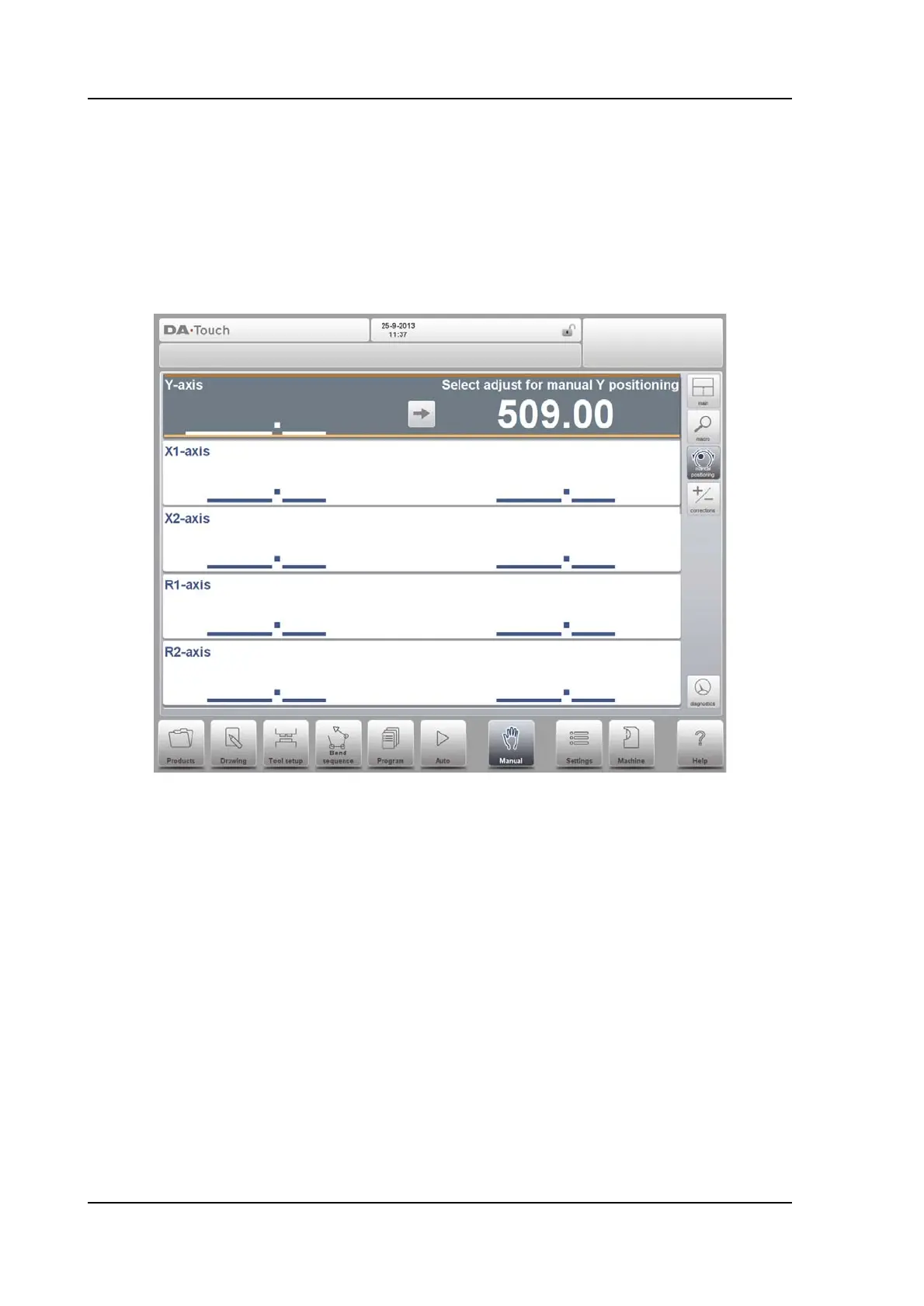

control can be used. After tapping Manual Pos in the main screen of Manual Mode, the
following screen appears:
Within this mode, any of the shown axes can be moved by turning the hand wheel. The
procedure for moving the axis depends on the axis you wish to move.
Auxiliary axes
The control must be stopped (the LED on the Stop button is on).
First select the desired back gauge axis, you will see the cursor at the required axis.
Then you can move the axis by turning the wheel.
Y-axis
The pressbeam can be positioned manually in the same way as the auxiliary axes.
However, for the Y-axis several conditions must be met:
• The control must be started (the LED on the Start button is on).
• The 'adjust' function must be active, indicated on the screen by "Adjust" in the
lower right-hand corner.
• The Y-axis must be below mute-point.
• A pressing command must be given to the CNC.
