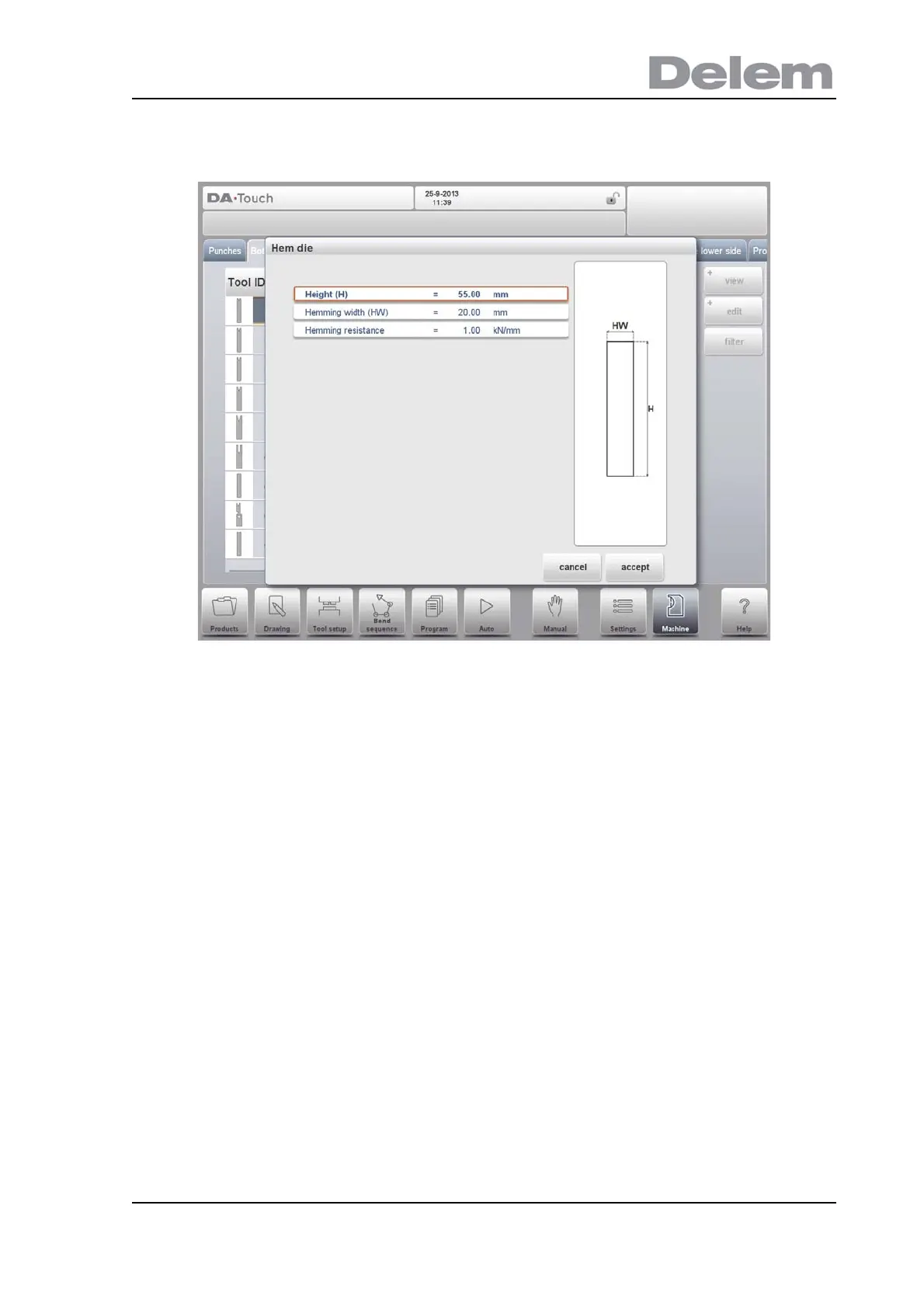

10.3.4. Hem bend die
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Hemming width
The width of the tool to program.
Hemming resistance
Maximum allowable force on the tool during hemming.
After entering these typical values you can create the tool drawing with the drawing facilities.
Drawing a tool profile is done by entering angle values and line length values. Also the Touch
drawing tools are available as with the product drawing method.
