V0913, 3.7

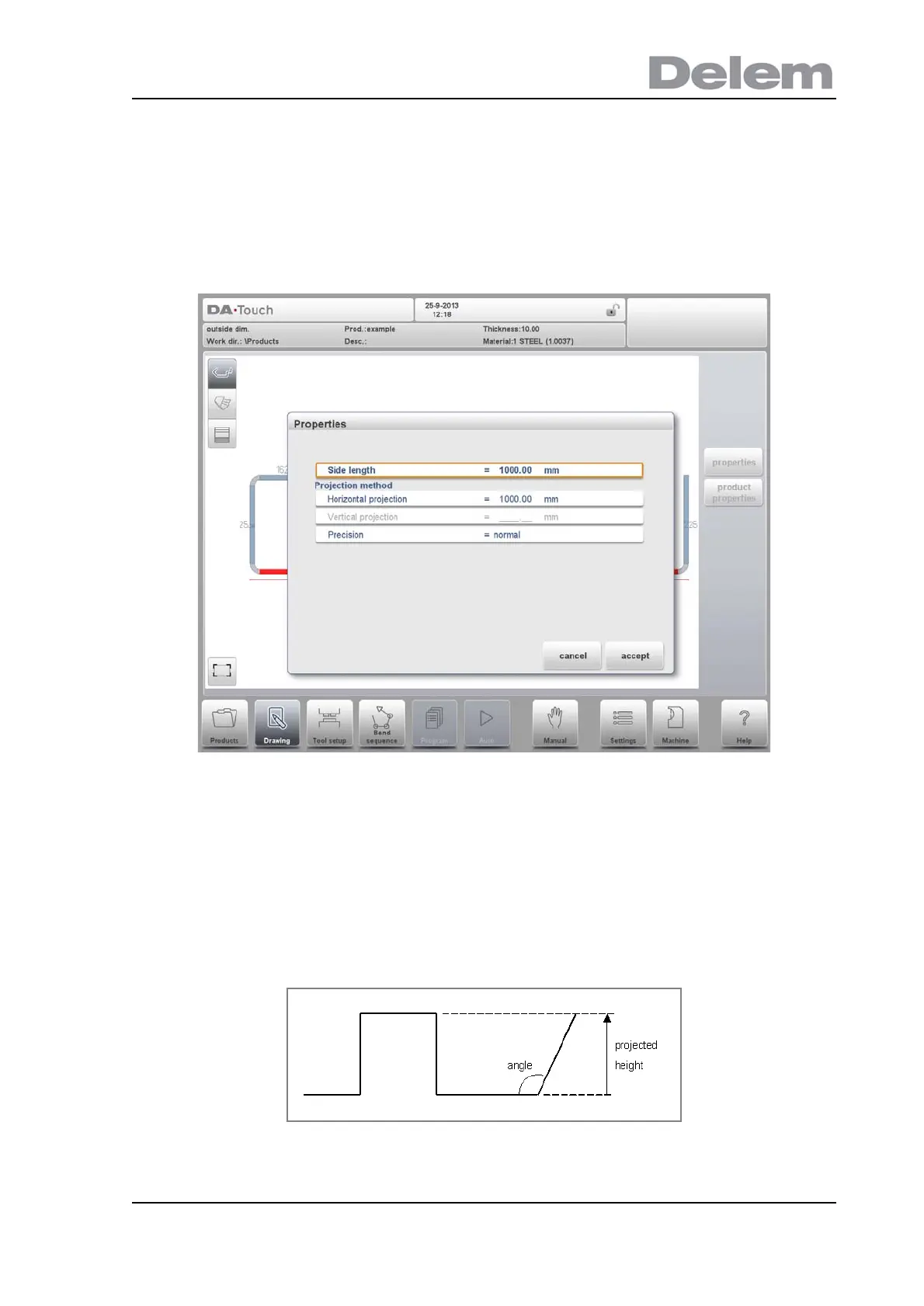

3.3. Line properties
3.3.1. Introduction
When the cursor is on one of the product lines it is possible to change the properties of that
line by selecting Properties.
3.3.2. Projection
Inside the window with line properties, the following projection properties can be programmed:
Horizontal projection
The horizontal distance a line must measure, regardless of its angle value.
Vertical projection
The vertical distance a line must measure, regardless of its angle value.
The projection function is a useful aid for drawing diagonal lines between points without
having to compute the precise side length. When a line is selected, simply enter a horizontal
