V0913, 6.5

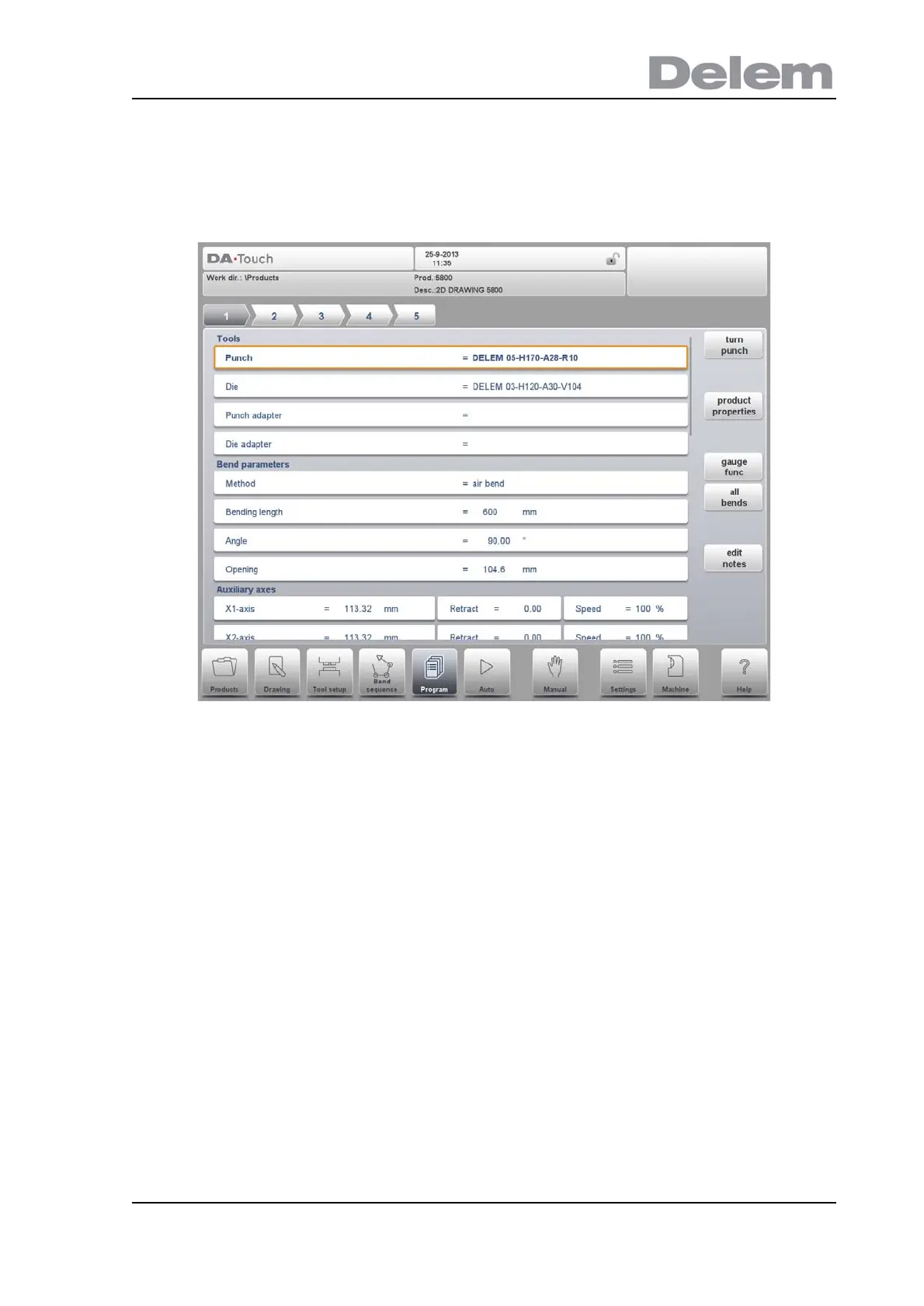

6.2. Bend parameters
The parameters of every bend are listed on one page and can be scrolled thru. Below the
specific bend paramaters are explained.
The product ID and product description are displayed in the top row on the screen.
Tools
Punch
The name (ID) of the selected punch. Tap to modify or select from the punch library.
Die
The name (ID) of the selected die. Tap to modify or select from the die library.
Punch adapter
The name (ID) of the selected punch adapter. Tap to modify or select from the punch
adapter library. Whether an adapter can be programmed depends on the parameter Use
punch adapter in the Machine mode.
Die adapter
The name (ID) of the selected die adapter. Tap to modify or select from the die adapter
library. Whether an adapter can be programmed depends on the parameter Use die
adapter in the Machine mode.
Program the desired tool ID or press the tool to get an overview of the available tools in the
library. Press the function Turn Punch or Turn Die to change the orientation of the tool (i.e. to
